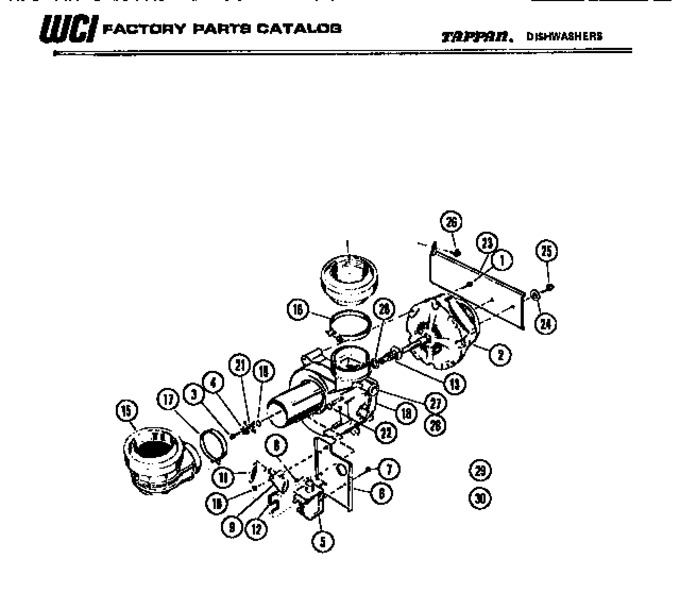

08 - Main Motor Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3351035		Screw, Mtr. Mtg.		Appelez-nous	-
2	3351034		Motor, Main		Appelez-nous	-
3	3351036		Screw, Shaft		Appelez-nous	-
4	3351037		Lockwash, Shaft		Appelez-nous	-
5	3351038		Solenoid		Appelez-nous	-
6	3351039		Brkt, Solenoid		Appelez-nous	-
7	3351017		Screw, Solenoid		Appelez-nous	-
8	3351040		Screw, Brkt.		Appelez-nous	-
9	3351041		Lever, Drain		Appelez-nous	-
10	3351042		Retain., Lever		Appelez-nous	-
11	3351043		Spring, Lever		Appelez-nous	-
12	3351044		Link, Solenoid		Appelez-nous	-
13	3351045		Protector, Shaft		Appelez-nous	-
14	3351046		Boot, W/nut		Appelez-nous	-
15	3351047		Elbow		Appelez-nous	-
16	3351048		Clamp, Boot		Appelez-nous	-
17	3351049		Clamp, Elbow		Appelez-nous	-
18	3351050		Pump Sealed		Appelez-nous	-
19	3351051		O-ring		Appelez-nous	-
20	3351052		O-ring Mtr, Shaft		Appelez-nous	-
21	3351053		Bide, Chopper		Appelez-nous	-
22	3351054		Seal, Drain Shaft		Appelez-nous	-
23	3351055		Bracket		Appelez-nous	-
24	3350156		Grommet		Appelez-nous	-
25	3351057		Screw, Brkt To Mtr		Appelez-nous	-
26	3351053		Screw, Brkt To Support		Appelez-nous	-
29	3351075		Hose, Drain (non-illustrated)		Appelez-nous	-
30	3351076		Clamp, Drain Hose (non-illustrated)		Appelez-nous	-
