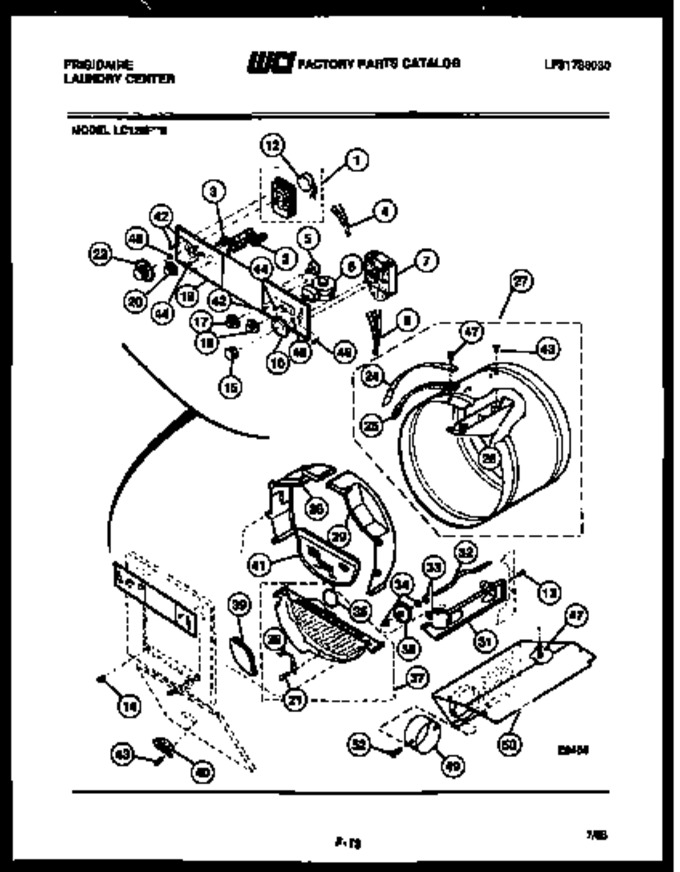

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016482 | Timer & Motor-dryer |
|
- | |||||
| 2 | 3017969 | Switch - Start & Door |
|
- | |||||
| 3 | 3016483 | Switch-fabric Selector |
|
- | |||||
| 4 | 3016484 | Harness-dryer |
|
- | |||||
| 5 | 3017970 | Switch - Water Temp |
|
- | |||||
| 6 | 3016450 | Switch - Pressure |
|
- | |||||
| 7 | 3016451 | Timer And Motor-washer |
|
- | |||||
| 8 | 3016452 | Upper Harness - Washer Motor |
|
- | |||||
| 10 | 3017971 | Dial Indicator |
|
- | |||||
| 12 | 8010815 | Motor-timer-dryer |
|
- | |||||
| 13 | 8011280 | Screw |
|
- | |||||
| 14 | 8004125 | Screw |
|
- | |||||
| 15 | 3017972 | Knob - Washer Timer |
|
- | |||||
| 16 | 8015841 | Knob-switch-pressure |
|
- | |||||
| 17 | 8015842 | Knob-water Temp. Sw. |
|
- | |||||
| 18 | 3017973 | Trimplate |
|
- | |||||
| 20 | 8015851 | Knob-fabric Selector Sw. |
|
- | |||||
| 21 | 8006553 | Screw |
|
- | |||||
| 22 | 8015852 | Knob & Dial Assy. |
|
- | |||||
| 24 | 0639864 | Band |
|
- | |||||
| 25 | 1132356 | Drum Seal-front |
|
- | |||||
| 25 | 8016240 | Drum Seal-rear |
|
- | |||||
| 26 | 8014895 | Baffle-drum (3) |
|
- | |||||
| 27 | 3004200 | Drum Assembly |
|
- | |||||
| 28 | 8015830 | Rim-drum-lh |
|
- | |||||
| 29 | 8015829 | Rim-drum-rh |
|
- | |||||
| 31 | 3017902 | Bracket Roller L.h. |
|
- | |||||
| 31 | 3017901 | Bracket Roller R.h. |
|
- | |||||
| 32 | 8004076 | Shaft-roller (2) |
|
- | |||||
| 33 | 8027670 | Snap Ring (4) |
|
- | |||||
| 34 | 7537238 | Washer |
|
- | |||||
| 35 | 8004077 | Roller & Wheel Assy. (4) |
|
- | |||||
| 36 | 0639377 | Seal-lint Housing |
|
- | |||||
| 37 | 8950156 | Housing Assy-lint |
|
- | |||||
| 38 | 0639296 | Clip |
|
- | |||||
| 39 | 1127466 | Insulation |
|
- | |||||
| 40 | 3016456 | Magnet Assy. (white) |
|
- | |||||
| 41 | 0633870 | Screen-lint |
|
- | |||||
| 42 | 8006636 | Screw-dryer-timer/pnl (2) |
|
- | |||||
| 42 | 8002284 | Screw-wtr Temp Sw & Fab Sw (2) |
|
- | |||||
| 43 | 8006553 | Screw-baffle/drum (6) |
|
- | |||||
| 43 | 8015832 | Screw-magnet Assy/pnl (2) |
|
- | |||||
| 44 | 8002339 | Screw (3) |
|
- | |||||
| 46 | 8006636 | Screw (2) |
|
- | |||||
| 47 | 8006547 | Screw (13) |
|
- | |||||
| 48 | 8015493 | Spacer-timer Shaft-washer |
|
- | |||||
| 49 | 3016459 | Extension - Exhaust Pipe |
|
- | |||||
| 50 | 3016460 | Shield |
|
- | |||||
| 52 | 8002339 | Screw |
|
- | |||||
| *16692 | 1134149 | Shield-washer Timer |
|
- |
