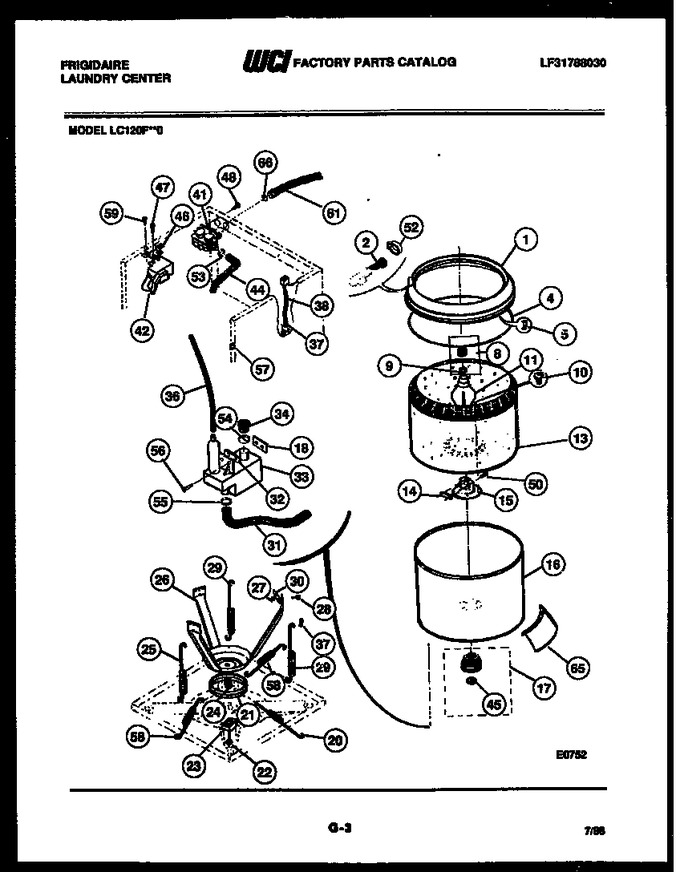

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8027575 | Tub Cover |
|
- | |||||
| 2 | 8027515 | Check Valve |
|
- | |||||
| 4 | 8002430 | Seal-tub Cover |
|
- | |||||
| 5 | 8002429 | Clip (8) |
|
- | |||||
| 8 | 8006677 | Agitator Cap (includes Ref. 9) |
|
- | |||||
| 9 | 8002427 | Washer |
|
- | |||||
| 10 | 8027519 | Screw (5) |
|
- | |||||
| 11 | 3161485 | Agitator |
|
- | |||||
| 12 | 8014912 | Clamp |
|
- | |||||
| 13 | 8027576 | Spin Tub |
|
- | |||||
| 14 | 8014907 | Lockplate |
|
- | |||||
| 15 | 8014908 | Trunnion |
|
- | |||||
| 16 | 8057443 | Splash Tub |
|
- | |||||
| 17 | 8027536 | Bearing |
|
- | |||||
| 18 | 8011303 | Speednut |
|
- | |||||
| 20 | 8006564 | Spring-horizontal-long |
|
- | |||||
| 21 | 8002385 | Snubber Ring |
|
- | |||||
| 22 | 8027679 | Bolt-shipping |
|
- | |||||
| 23 | 8004066 | Block-shipping |
|
- | |||||
| 24 | 8002382 | Nut-expansion |
|
- | |||||
| 25 | 8006565 | Spring-vertical-short |
|
- | |||||
| 26 | 8004065 | Leg & Dome |
|
- | |||||
| 27 | 8002377 | Nut (6) |
|
- | |||||
| 28 | 8002378 | Screw (6) |
|
- | |||||
| 29 | 8006566 | Spring-vertical-long (2) |
|
- | |||||
| 30 | 8002379 | Plate-leg Bolt (3) |
|
- | |||||
| 31 | 8008997 | Hose-pump/trap |
|
- | |||||
| 32 | 8015845 | Shim-button Trap |
|
- | |||||
| 33 | 8002366 | Button Trap |
|
- | |||||
| 34 | 8006674 | Grommet |
|
- | |||||
| 36 | 8015785 | Tube-pressure (tape (monafilament)-pressure Tube To Cabi |
|
- | |||||
| 37 | 8004083 | Clip |
|
- | |||||
| 37 | 8004129 | Clip |
|
- | |||||
| 38 | 3017109 | Harness |
|
- | |||||
| 41 | 8015532 | Water Valve |
|
- | |||||
| 42 | 3017110 | Lid Lock |
|
- | |||||
| 44 | 8006571 | Hose |
|
- | |||||
| 45 | 8002401 | Thrust Washer |
|
- | |||||
| 46 | 8004084 | Bracket-lid Lock |
|
- | |||||
| 47 | 8011280 | Screw |
|
- | |||||
| 48 | 8015533 | Screw (2) |
|
- | |||||
| 50 | 8027517 | Screw (2) |
|
- | |||||
| 52 | 8008472 | Clamp-hose |
|
- | |||||
| 53 | 8006572 | Clamp-hose |
|
- | |||||
| 54 | 8002367 | Clamp |
|
- | |||||
| 55 | 8014913 | Clamp |
|
- | |||||
| 56 | 8006548 | Screw (2) |
|
- | |||||
| 57 | 8004129 | Clip-harness |
|
- | |||||
| 58 | 8006573 | Spring-horizontal-short (2) |
|
- | |||||
| 59 | 8006670 | Screw (2) |
|
- | |||||
| 61 | 8011264 | Hose-inlet-hot |
|
- | |||||
| 65 | 8011275 | Shield-motor (plastic Motor Shield & Tape-fabricate Loca |
|
- | |||||
| 66 | 8015499 | Washer-hose (4) |
|
- | |||||
| *16698 | 8950157 | Adhesive & Primer Adh. |
|
- | |||||
| *16698 | 8014893 | Clip-pressure-tube-long |
|
- | |||||
| *16698 | 8014892 | Clip-pressure-tube-short |
|
- | |||||
| 61A | 8002443 | Hose-inlet (cold) |
|
- |
