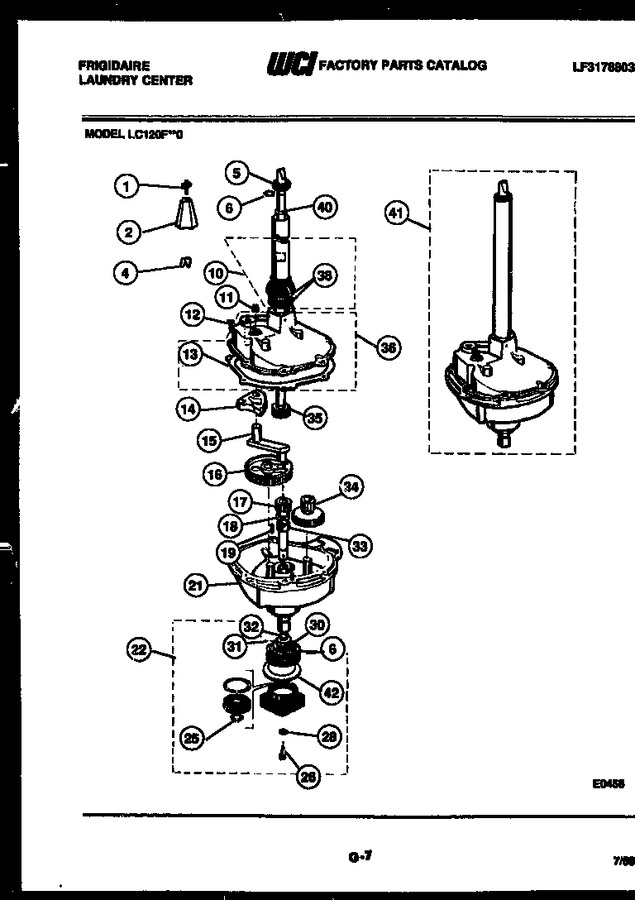

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8002491		Stud Bolt		Appelez-nous	-
2	8014904		Drive Block		Appelez-nous	-
4	8014904		Drive Block		Appelez-nous	-
5	8011270		Seal-upper Lip		Appelez-nous	-
6	8002474		Retaining Ring (2)		Appelez-nous	-
10	8950197		Water Seal Kit		Appelez-nous	-
11	8002803		Pipe Plug		Appelez-nous	-
12	8011267		Screw (6)		Appelez-nous	-
13	8015863		Gasket		Appelez-nous	-
14	8011268		Gear, Sector		Appelez-nous	-
15	8002809		Rod, Connecting		Appelez-nous	-
16	8015496		Gear, Crank		Appelez-nous	-
17	8027581		Shaft Assy.-lower		Appelez-nous	-
18	8002812		Thrust Washer		Appelez-nous	-
19	8002813		Dowel Pin		Appelez-nous	-
21	8015870		Housing-lower		Appelez-nous	-
22	8006578		Bearing-housing-lgs Spring Pkg		Appelez-nous	-
25	8015536		Ring-retaining		Appelez-nous	-
26	8027582		Screw (2)		Appelez-nous	-
28	8002467		Spacer-rubber (2)		Appelez-nous	-
30	8002475		Spacer Washer		Appelez-nous	-
31	8002812		Thrust Washer		Appelez-nous	-
32	8002477		Seal-lower Lip		Appelez-nous	-
33	8002817		Lgs Spring (small)		Appelez-nous	-
34	8002816		Gear, Idler		Appelez-nous	-
35	8014910		Shaft Assy.-agitator		Appelez-nous	-
36	8015779		Housing Assy.-upper		Appelez-nous	-
38	8002479		Slinger		Appelez-nous	-
40	8002481		Thrust Washer		Appelez-nous	-
41	8016602		Transmission Complete		Appelez-nous	-
42	8057430		Washer		Appelez-nous	-
*16702	8002818		Transmission Oil (1 Qt.)		Appelez-nous	-
*16702	8011269		Sleeve-clutch Coil		Appelez-nous	-
