01 - Cover

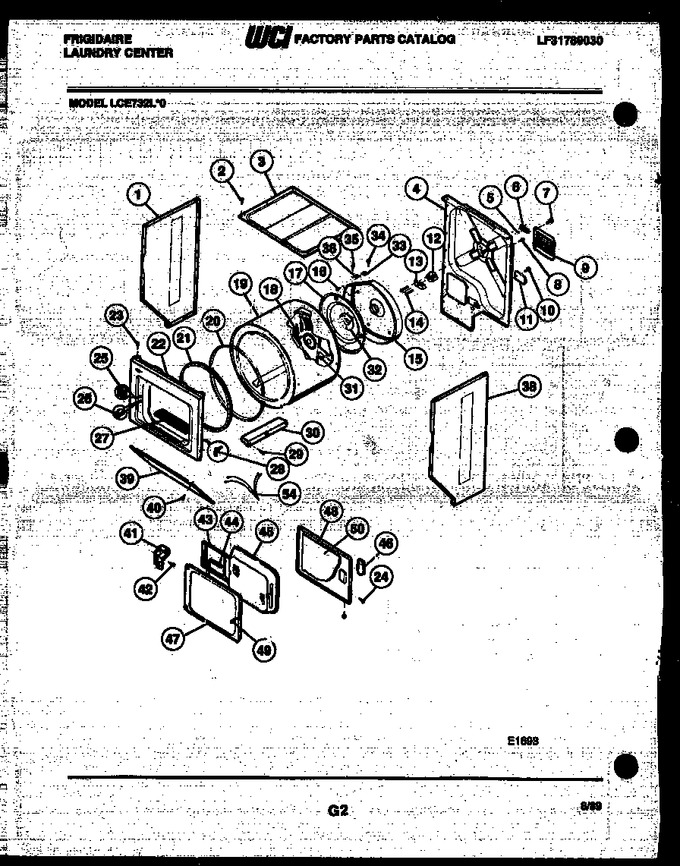

02 - Cabinet And Component Parts
03 - Motor And Blower Parts
04 - Console And Control Parts
05 - Cabinet Parts
06 - Tub Detail
07 - Transmission Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204245 | Left Side Panel-white |
|
- | |||||
| 2 | 08011280 | Screw |
|
- | |||||
| 3 | 3204247 | Top Panel |
|
- | |||||
| 4 | 3204248 | Rear Panel |
|
- | |||||
| 5 | 3281019 | Ball |
|
- | |||||
| 6 | 3281020 | Clip |
|
- | |||||
| 7 | 08011280 | Screw |
|
- | |||||
| 8 | 08011280 | Screw |
|
- | |||||
| 9 | 3204249 | Motor Access Panel |
|
- | |||||
| 10 | 03011280 | Screw |
|
- | |||||
| 11 | 3204250 | Cover-terminal Block |
|
$ 34.91 | |||||
| 12 | 3281008 | Rear Bearing |
|
- | |||||
| 13 | 3204251 | Bracket-bearing |
|
- | |||||
| 14 | 3281033 | Screw (2) |
|
- | |||||
| 15 | 3937010 | Heater Assembly (Replaces: 3204252) |
|
Immediately | $ 193.49 | ||||
| 16 | 3204253 | Screw (4) |
|
- | |||||
| 17 | 3204254 | Baffle-heater |
|
$ 129.00 | |||||
| 18 | 3205255 | Screw-drum To Shaft Support (3) |
|
- | |||||
| 19 | 3205628 | Drum |
|
- | |||||
| 20 | 3204259 | Ring Bearing (2) |
|
- | |||||
| 21 | 3204260 | Seal-bearing Support |
|
$ 114.50 | |||||
| 22 | 3205629 | Front Panel-white |
|
- | |||||
| 23 | 3261242 | Screw-front Panel To Side Panel (2) |
|
- | |||||
| 24 | 3281176 | Screw (6) |
|
- | |||||
| 25 | 3281055 | Door Catch |
|
- | |||||
| 26 | 08001614 | Door Switch |
|
- | |||||
| 27 | 3204263 | Air Grill-white |
|
$ 116.39 | |||||
| 28 | 3281074 | Guide Clip (4) |
|
- | |||||
| 29 | 131382300 | Screw (6) (Replaces: 3202754) |
|
Immediately | $ 13.46 | ||||
| 30 | 3201200 | Vane (3) |
|
- | |||||
| 31 | 3204265 | Screw-baffle To Drum (3) |
|
- | |||||
| 32 | 3281009 | Support Shaft |
|
- | |||||
| 33 | 3204267 | Safety Thermostat |
|
Immediately | $ 53.49 | ||||
| 34 | 3281066 | Screw (2) |
|
- | |||||
| 35 | 3204269 | Screw (2) |
|
- | |||||
| 36 | 3204270 | Fusestat |
|
- | |||||
| 38 | 3204271 | Right Side Panel-white |
|
- | |||||
| 39 | 3204273 | Access Panel-white |
|
- | |||||
| 40 | 08011318 | Screw (2) |
|
- | |||||
| 41 | 3204276 | Lower Hinge |
|
- | |||||
| 41 | 3204275 | Upper Hinge |
|
$ 62.95 | |||||
| 42 | 3204277 | Screw-hinges To Front Panel (4) |
|
- | |||||
| 42 | 3205239 | Screw-hinges To Door (4) |
|
- | |||||
| 43 | 3204278 | Lint Filter-white |
|
- | |||||
| 44 | 3204279 | Door Gasket-white |
|
- | |||||
| 45 | 3204280 | Lint Filter Hsg-white |
|
- | |||||
| 46 | 3204281 | Door Handle-white |
|
- | |||||
| 47 | 3204283 | Inner Door-white |
|
- | |||||
| 48 | 3204284 | Outer Door-white |
|
- | |||||
| 49 | F141736-000 | Door Strike |
|
- | |||||
| 50 | 134535300 | Heat Shield (Replaces: 3204286) |
|
$ 60.25 | |||||
| 54 | 3205631 | Harness-door Switch |
|
- | |||||
| *26015 | 3204430 | Nut-between Fusestat & Heater Assembly |
|
- |
