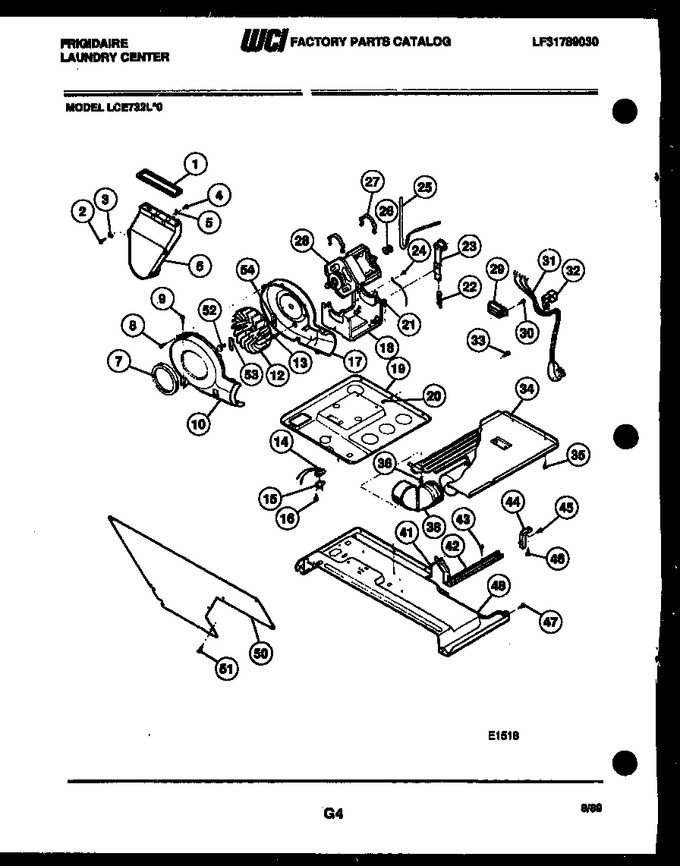

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204298 | Seal-air Duct To Front Panel |
|
$ 46.99 | |||||
| 2 | 3281066 | Screw (2) |
|
- | |||||
| 3 | 08014350 | Clip (2) |
|
- | |||||
| 4 | 3281066 | Screw (2) |
|
- | |||||
| 5 | 08014350 | Clip (2) |
|
- | |||||
| 6 | 3204299 | Air Duct |
|
- | |||||
| 7 | 3204490 | Seal-hsg. To Air Duct |
|
$ 14.18 | |||||
| 8 | 3204308 | Screw (6) |
|
- | |||||
| 9 | 3161242 | Screw (2) |
|
- | |||||
| 10 | 3204301 | Front-blower Hsg |
|
- | |||||
| 12 | 3205233 | Blower Wheel |
|
$ 43.21 | |||||
| 13 | 3161242 | Screw (3) |
|
- | |||||
| 14 | F136777-000 | External Thermostat Heat |
|
- | |||||
| 15 | 3204307 | Control Thermostat |
|
$ 136.79 | |||||
| 16 | 3204308 | Screw (2) |
|
- | |||||
| 17 | 3204309 | Rear-blower Housing |
|
- | |||||
| 18 | 3201239 | Motor-cradle |
|
- | |||||
| 19 | 3204311 | Upper Motor Cradle Pan |
|
- | |||||
| 20 | 3161239 | Screw-pan To Shield & Side Panel (4) |
|
- | |||||
| 20 | 3204253 | Screw-pan To Rear |
|
- | |||||
| 21 | 3281077 | Screw-cradle To Pan |
|
- | |||||
| 22 | 3205241 | Idler Spring |
|
$ 75.83 | |||||
| 23 | 3205242 | Idler Arm Assembly |
|
$ 205.60 | |||||
| 24 | 3161233 | Ground Screw |
|
- | |||||
| 25 | 3204314 | Belt |
|
- | |||||
| 26 | 3201237 | Motor Pulley |
|
- | |||||
| 27 | 3204315 | Clamp-motor (2) |
|
- | |||||
| 28 | 3204316 | Dryer Motor |
|
- | |||||
| 29 | 3016470 | Terminal Block |
|
- | |||||
| 30 | 3281024 | Screw (2) |
|
- | |||||
| 31 | 3017939 | Power Cord |
|
- | |||||
| 32 | 3204317 | Strain Relief |
|
- | |||||
| 33 | 3161275 | Ground Screw-rear Pnl |
|
- | |||||
| 34 | 3204319 | Access Shield |
|
- | |||||
| 35 | 3161239 | Screw (6) |
|
- | |||||
| 36 | 3161233 | Screw |
|
- | |||||
| 38 | 3204320 | Elbow |
|
- | |||||
| 41 | 3161242 | Screw-brkt To Side Panels (4) |
|
- | |||||
| 42 | 3204324 | Interior Marriage Brkt (2) |
|
- | |||||
| 43 | 3204325 | Screw-brkt To Brkt (4) |
|
- | |||||
| 44 | 3204326 | External Brkt (2) |
|
$ 43.24 | |||||
| 45 | 3161239 | Screw (4) |
|
- | |||||
| 46 | 3204325 | Screw (2) |
|
- | |||||
| 47 | 3161239 | Screw (6) |
|
- | |||||
| 48 | 3204327 | Bottom Pan |
|
- | |||||
| 50 | 3204329 | Safety Cover |
|
$ 40.16 | |||||
| 51 | 3161242 | Screw (7) |
|
- | |||||
| 52 | 3205238 | Screw |
|
- | |||||
| 53 | 3205236 | Clamp-front |
|
- | |||||
| 54 | 3205237 | Clamp-rear |
|
- |
