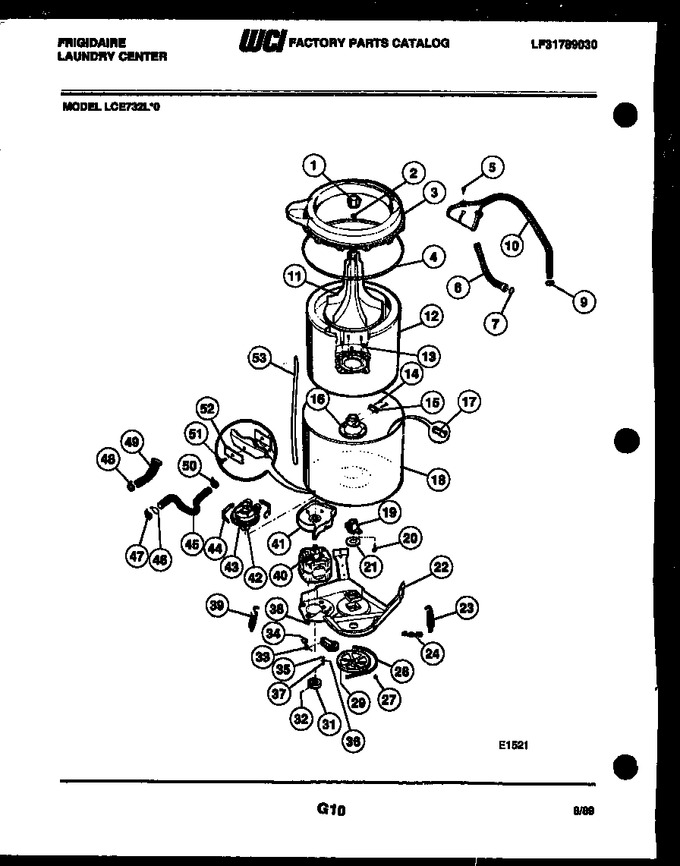

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204395		Agitator Cap				$ 50.38
2	3204396		Seal-agitator Cap				$ 30.02
3	3204397		Splash Tub Cover		Appelez-nous	-
4	131901400		Gasket   (Replaces: 3204398)			Immediately	$ 21.69
5	08006553		Screw		Appelez-nous	-
6	F140162-000		Inlet Hose (hot & Cold)		Appelez-nous	-
7	3161296		Washer		Appelez-nous	-
9	3012110		Clamp		Appelez-nous	-
10	3204400		Nozzle & Hose Assy		Appelez-nous	-
11	3204401		Agitator				$ 126.81
12	3204402		Spin Tub		Appelez-nous	-
13	08027519		Screw (5)		Appelez-nous	-
14	08027517		Screw (2)		Appelez-nous	-
15	08001923		Lockplate		Appelez-nous	-
16	08014908		Trunnion		Appelez-nous	-
17	3204403		Pressure Deflector		Appelez-nous	-
18	3204404		Splash Tub & Bearing Assembly		Appelez-nous	-
19	3204405		Upper Spin Bearing			Immediately	$ 97.81
20	3205150		Screw (2)				$ 3.55
21	08002401		Washer		Appelez-nous	-
22	3204408		Leg & Dome Assembly		Appelez-nous	-
23	3204409		Vertical Spring (short)		Appelez-nous	-
24	3204410		Horizontal Spring (3)		Appelez-nous	-
27	3161456		Screw		Appelez-nous	-
28	134511600		Belt   (Replaces: 3204418)			Immediately	$ 28.41
29	3204420		Transmission Pulley		Appelez-nous	-
30	3204422		Idler Arm Assy		Appelez-nous	-
31	3204423		Motor Pulley				$ 140.07
32	3204424		Roll Pin				$ 12.60
33	3204425		Torsion Spring				$ 45.09
34	3204426		Sleeve-idler Pivot				$ 9.35
35	3161433		Retaining Ring				$ 18.79
36	3261031		Washer-pivot Shaft		Appelez-nous	-
37	3161306		Spring Washer		Appelez-nous	-
38	3204430		Hex Nut (4)		Appelez-nous	-
39	3204448		Vertical Spring (2)		Appelez-nous	-
40	3205647		Motor		Appelez-nous	-
41	3204450		Motor Shield		Appelez-nous	-
42	3204451		Slinger-pump		Appelez-nous	-
43	3204452		Pump		Appelez-nous	-
44	3204453		Clip-pump		Appelez-nous	-
45	3204454		Hose-pump To Coupler		Appelez-nous	-
46	3204455		Clip-hose To Leg		Appelez-nous	-
47	3204456		Clamp		Appelez-nous	-
48	3204457		Clamp		Appelez-nous	-
49	3204458		Hose-pump To Tub				$ 147.09
50	3204456		Clamp		Appelez-nous	-
51	3204459		Screw				$ 24.20
52	3204460		Plate- Leg Bolt		Appelez-nous	-
53	F77199-6		Pressure Tube		Appelez-nous	-
