Diagram for 02 - Splasher Control
02 - Splasher Control

Diagram for 03 - Cooktop Parts
03 - Cooktop Parts

Diagram for 04 - Lower Oven Door Parts
04 - Lower Oven Door Parts

Diagram for 05 - Broiler Drawer Parts
05 - Broiler Drawer Parts

Diagram for 06 - Control Panel
06 - Control Panel

Diagram for 07 - Upper Oven Door Parts
07 - Upper Oven Door Parts

Diagram for 08 - Burner, Manifold And Gas Control
08 - Burner, Manifold And Gas Control

Diagram for 09 - Lower Body Parts
09 - Lower Body Parts

Diagram for 10 - Upper Body Parts
10 - Upper Body Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3204444 Panel-manifold Appelez-nous -
2 358T197P07 Knob Top Valve (4) Appelez-nous -
3 3013818 Rod-main Top Supt. (2) Appelez-nous -
4 3011558 Brkt-main Top Hng Lh Appelez-nous -
5 3011559 Brkt-main Top Hng Rh Appelez-nous -
6 3934036 Pnl Main Top (wheat) Appelez-nous -
7 3018432 Grate (4) Appelez-nous -
8 3131190 Cover-vent Appelez-nous -
*22449 612T124P01 Retainer - Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

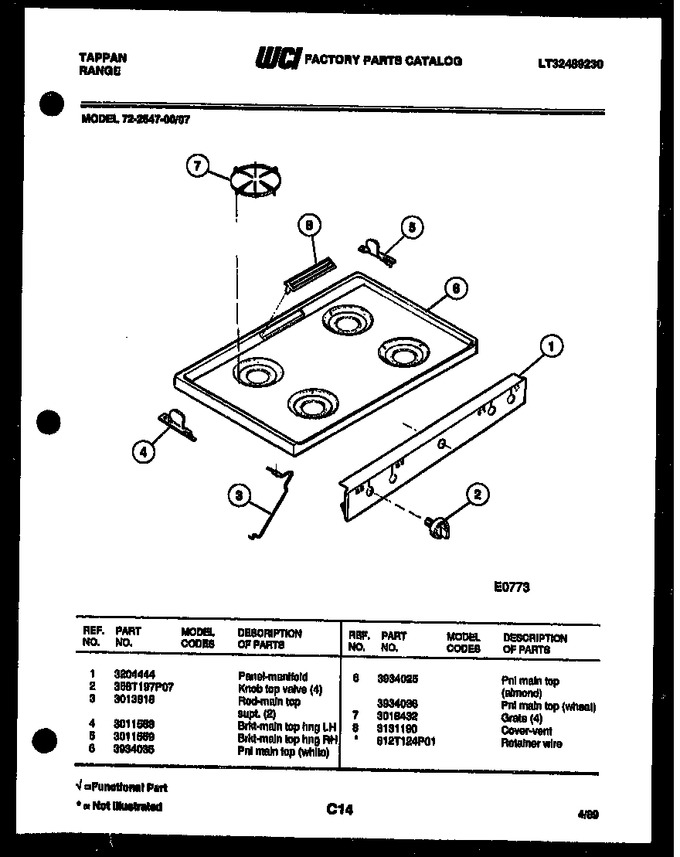

Diagram for 72-2547-66-07
