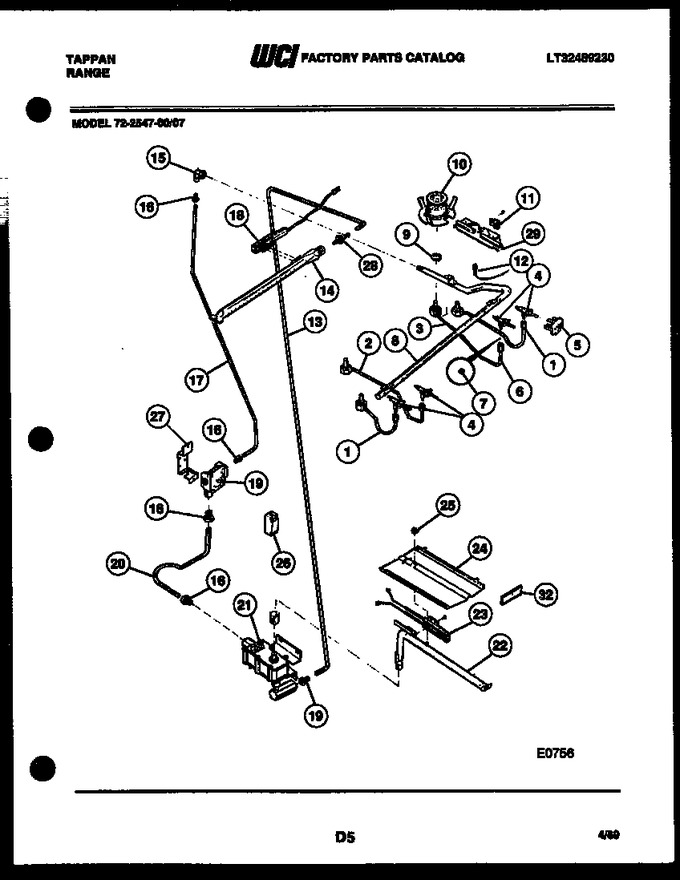

08 - Burner, Manifold And Gas Control


09 - Lower Body Parts


10 - Upper Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131970		Burner-tube (lf Rf)		Appelez-nous	-
2	079T033H03		Burner Tube, Left Rear		Appelez-nous	-
3	079T033H02		Burner, Tube		Appelez-nous	-
4	3017542		Valve-top 2 Pos.		Appelez-nous	-
5	695T225P01		Ign.-switch		Appelez-nous	-
6	3131148		Nut Compresn (4)		Appelez-nous	-
7	3012358		Ferrule (4)		Appelez-nous	-
8	3018861		Manifold Pipe		Appelez-nous	-
9	3013279		Nut, Special, 4				$ 2.34
10	3011567		Burner Top (4)		Appelez-nous	-
11	3018617		Retainer Electros		Appelez-nous	-
12	3131105		Electrode (4)		Appelez-nous	-
13	3131643		Tube Supply Uppr Oven		Appelez-nous	-
14	3200502		Burnr Upper Ovn		Appelez-nous	-
15	3012204		Elbow 1/2 Np To 9/16-24		Appelez-nous	-
16	3131261		Fitting Loxit (4)		Appelez-nous	-
17	3014477		Tube - Alum 3/8		Appelez-nous	-
18	3200508		Igniter-ovn Burner		Appelez-nous	-
19	166T011P01		Control - Regul		Appelez-nous	-
20	08068005		Tube Alum 3/8		Appelez-nous	-
21	774T116P11		Valve, Safety-dual		Appelez-nous	-
22	3131634		Burner Oven		Appelez-nous	-
23	3131300		Igniter, Oven		Appelez-nous	-
24	3131327		Baffle, Oven		Appelez-nous	-
25	479T069P03		Nut		Appelez-nous	-
26	3200669		Spark Module		Appelez-nous	-
27	3131110		Brkt Regul		Appelez-nous	-
28	3131641		Mixer-straight		Appelez-nous	-
29	136T355W03		Channel, Flash Tube		Appelez-nous	-
*22456	3051420		Pop Rivet		Appelez-nous	-
28A	3018603		Brkt Burnr Supt (non-illustrated)		Appelez-nous	-
28B	3131637		Brkt Mixer (non-illustrated)		Appelez-nous	-
