Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 665T108P02 Spacer Glass Appelez-nous -
2 276T091P01 Glass-rear Appelez-nous -
3 3051722 Glass Door Front Appelez-nous -
4 691T008S01 Strike W/o Latch Appelez-nous -
5 479T069P03 Nut 10-24 Dr Strik Appelez-nous -
6 136T188P01 Chanl O/u Dr End Appelez-nous -
7 08011727 Gusset Oven Dr. Appelez-nous -
8 136T187P03 Chanl W/o Dr Frame Appelez-nous -
9 296T058P01 Handle Door Appelez-nous -
10 636T098P18 Screw-handle Appelez-nous -
11 3051302 Spacer-glass Appelez-nous -

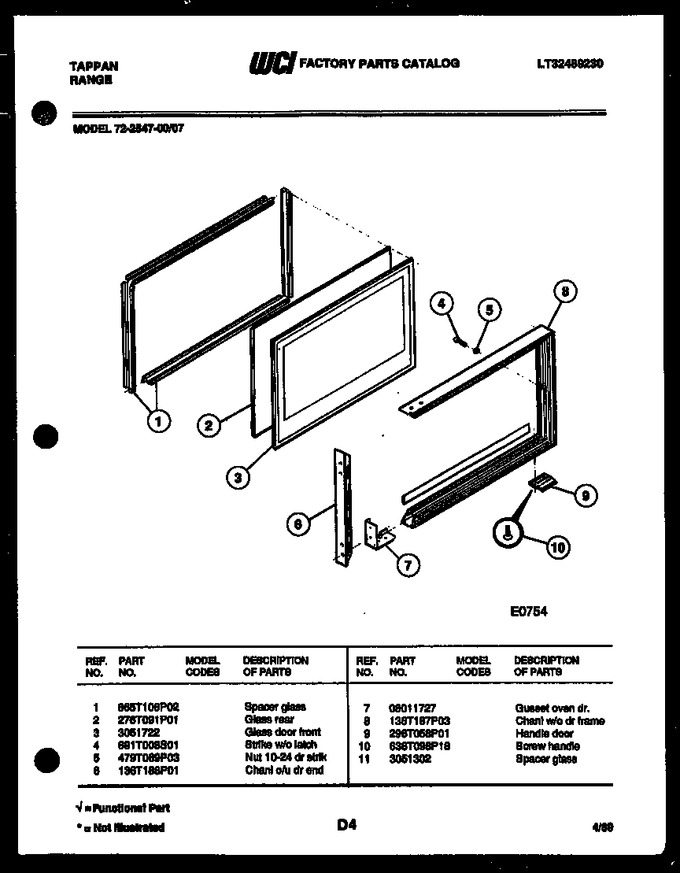

    View Diagram in Separate Window     Print Icon   Print Part List
