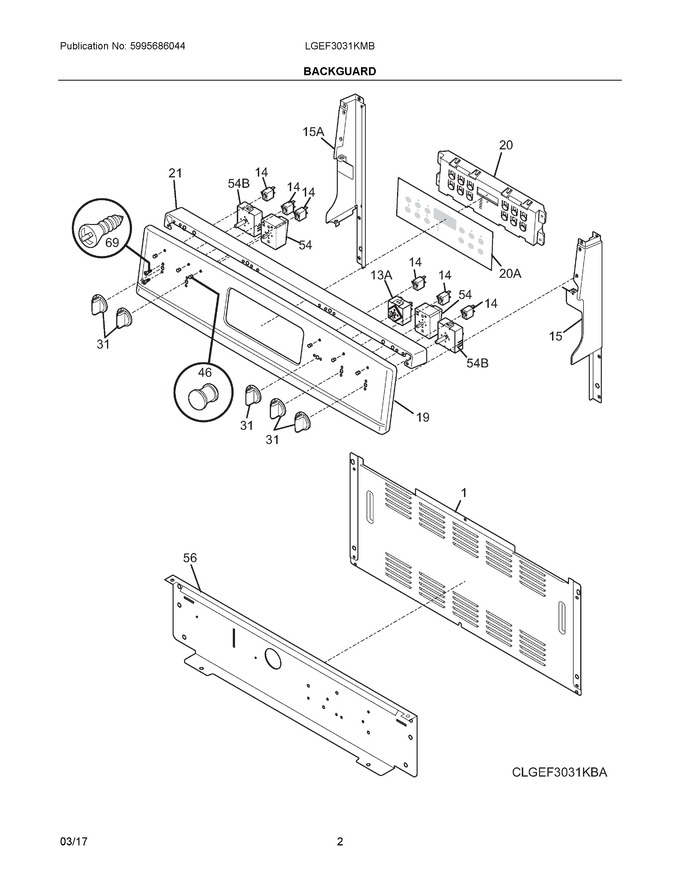

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316557600 | Shield, Rear Wall |
|
$ 70.04 | |||||
| 14 | 316022500 | Light/lamp, Indicator, 125 V |
|
Immediately | $ 53.57 | ||||
| 15 | 316546702 | Cap, Backguard, Black, Rh End |
|
$ 52.55 | |||||
| 19 | 316572423 | Panel, Backguard, Silver Mist |
|
- | |||||
| 20 | 316418300 | Clock/timer, Electronic, Es330 |
|
- | |||||
| 21 | 316546605 | Cap, Backguard, Black, Top (Replaces: 316546601) |
|
$ 66.91 | |||||
| 31 | 316564402 | Knob, Control, Black, (5) |
|
$ 46.24 | |||||
| 46 | 316557300 | Lens-light/lamp, Indicator, Clear |
|
Immediately | $ 16.77 | ||||
| 54 | 316436000 | Switch, Infinite, Small Element |
|
Immediately | $ 80.34 | ||||
| 56 | 316234045 | Shield, Backguard, Black, Inner (Replaces: 316234013) |
|
$ 66.74 | |||||
| 69 | 5303288565 | Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg |
|
$ 3.12 | |||||
| 13A | 5304508926 | Switch, Infinite, Warmer (Replaces: 316095503) |
|
Immediately | $ 84.18 | ||||
| 15A | 316546703 | Cap, Backguard, Black, Lh End |
|
$ 64.47 | |||||
| 20A | 316419339 | Overlay, Clock, Black, Es330 |
|
$ 48.20 | |||||
| 54B | 316238201 | Switch, Infinite Radian, Dual (Replaces: 316238200) |
|
Immediately | $ 89.00 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 |
