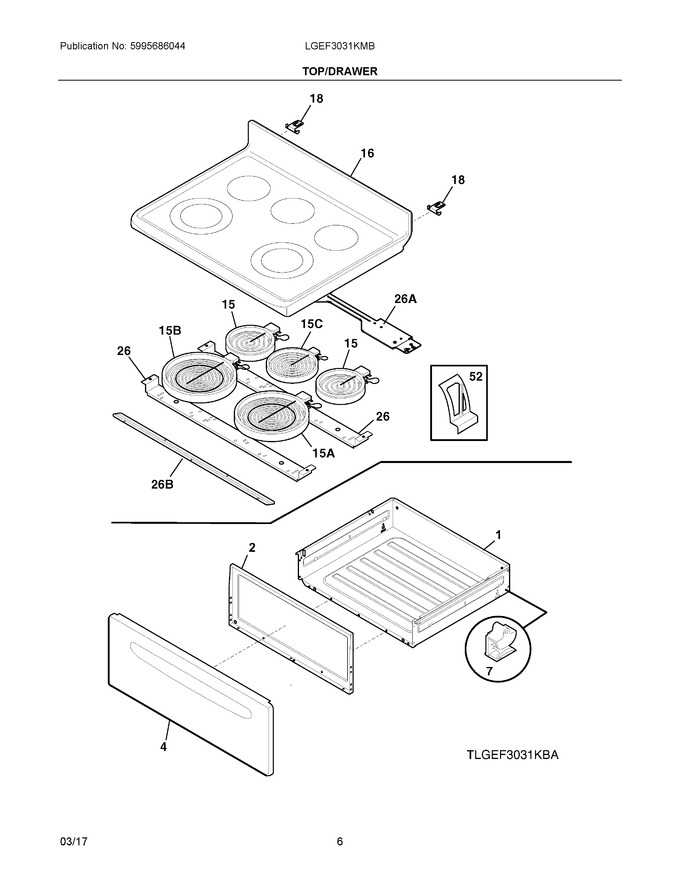

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 28.83
4	316403516		Panel, Drawer Front, Silver Mist				$ 65.88
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 9.86
15	318178110		Element, Surface, 6", 1200w, (2), Radiant   (Replaces: 318198846)			Immediately	$ 122.86
16	316531962		Maintop, Steel/glass, Black		Appelez-nous	-
18	316436600		Hinge Bracket, Maintop, (2)				$ 45.36
26	316427600		Channel, Element Support, (2)		Appelez-nous	-
52	316461700		Clip, Element Mtg				$ 12.05
15A	316545601		Element, Dual, 9"/6", Surface, 2500w, Radiant				$ 311.81
15B	5304533520		Element, Dual, 9"/6?, Surface, 3000w, Radiant, Quick Boil   (Replaces: 316465002)			Immediately	$ 90.14
15C	140273621015		Element, Surface, Warmer, 100 W   (Replaces: 318198832)			Immediately	$ 35.77
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
26B	316214202		Bracket, Chassis Support, Front				$ 25.41
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316468100		Cleaner, Smoothtop, W/sponge				$ 4.88
NI	316510691		Harness, Wiring, Surface		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.28
