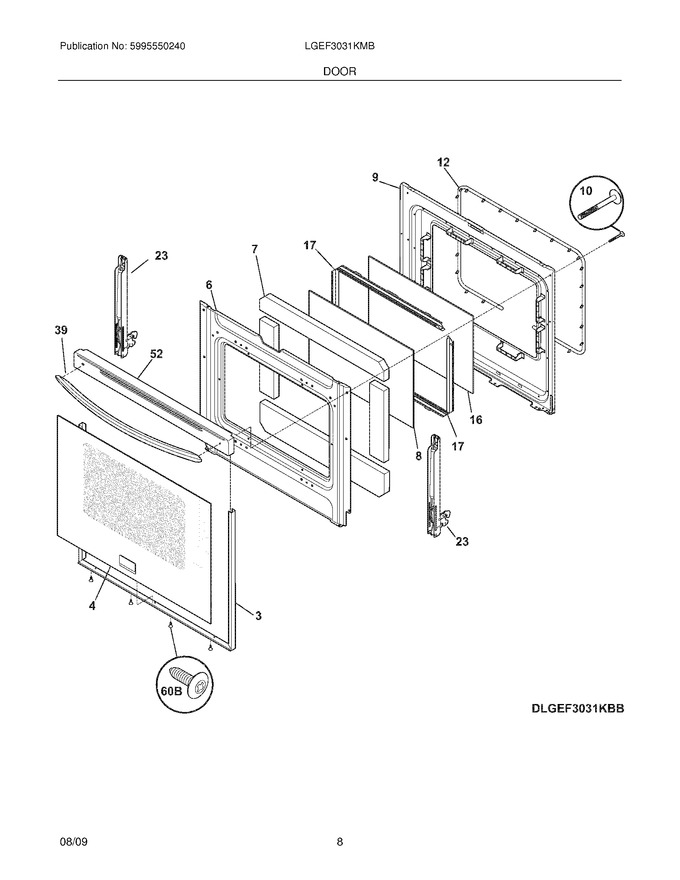

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
01 - Cover Sheet
02 - Backguard
03 - Backguard
03 - Body
04 - Top/drawer
05 - Body
05 - Door
07 - Top/drawer
09 - Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935377 | Trim Kit-door,3 Sided ,black ,w/tape (Replaces: 5303935317) |
|
Immediately | $ 58.12 | ||||
| 4 | 316452806 | Door Assembly,glass/overlay ,black/slvr Mist,w/foil & Badge |
|
- | |||||
| 5 | 316446401 | Glass,oven Door ,airwash (Replaces: 316446400) |
|
Immediately | $ 125.13 | ||||
| 6 | 316406328 | Shield,wool (Replaces: 316406310) |
|
$ 87.21 | |||||
| 7 | 316405600 | Insulation,oven Door |
|
$ 76.55 | |||||
| 9 | 316423701 | Liner,oven Door |
|
$ 143.50 | |||||
| 10 | 5304507924 | Screw,handle Mtg. ,no.10-24 X 2 ,(2) (Replaces: 316439505) |
|
Immediately | $ 16.48 | ||||
| 12 | 316405000 | Seal,oven Door |
|
Immediately | $ 179.17 | ||||
| 16 | 316117501 | Glass,oven Door ,inner |
|
$ 148.16 | |||||
| 17 | 5304504811 | Spacer,door Glass ,(2) (Replaces: 316402403) |
|
Immediately | $ 25.02 | ||||
| 20 | 316408600 | Spacer,door Handle ,(2) |
|
$ 16.45 | |||||
| 23 | 316537304 | Hinge,oven Door ,blue ,(2) |
|
- | |||||
| 39 | 316554010 | Handle,door/drawer ,stainless (Replaces: 316554005) |
|
Immediately | $ 168.44 | ||||
| 40 | 316446301 | Bracket,glass ,airwash ,(2) |
|
$ 59.96 | |||||
| 52 | 316575501 | Cap,door Trim ,black (Replaces: 316468401) |
|
$ 110.73 | |||||
| 10B | 316008401 | Washer,3/4 Od X 1/4 Id ,steel |
|
$ 11.34 | |||||
| 60B | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316418900 | Screw,sims Lp ,no.8-32 X 5/16`` ,black |
|
$ 14.18 | |||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316433603 | Label,anti-tip |
|
$ 3.55 |
