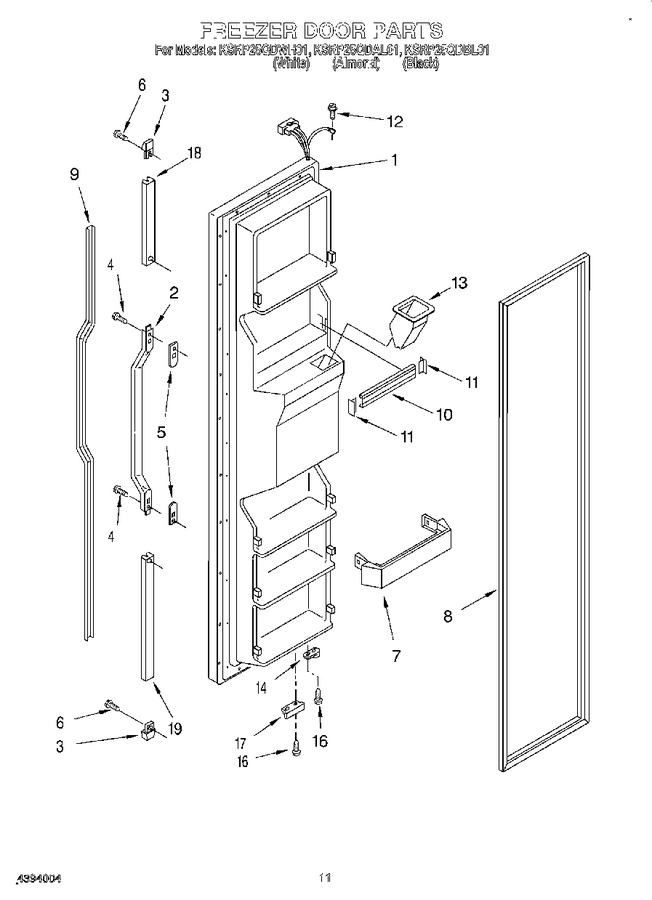

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2177224		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2177181		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2177223		Freezer Door (includes No.8 And Dispenser Front Parts) (almond)		Appelez-nous	-
2	1107215		Handle Assembly		Appelez-nous	-
3	1107341		End Cap (2)		Appelez-nous	-
4	WPW10141645		Screw   (Replaces: 489084)				$ 6.90
5	1107651		Spacer, Handle		Appelez-nous	-
6	489075		Screw		Appelez-nous	-
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (service)   (Replaces: 2177289)				$ 279.17
9	2180118		Insert, Handle (black)		Appelez-nous	-
9	1117948		Insert, Handle (white)		Appelez-nous	-
9	1117949		Insert, Handle (almond)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2177845)			Immediately	$ 20.80
11	WP2156006		End Cap   (Replaces: 2156006)			Immediately	$ 10.96
12	WP488234		Screw   (Replaces: 489422)				$ 6.07
13	2156146		Chute, Ice		Appelez-nous	-
14	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 24.62
16	WP999367		Screw   (Replaces: 489367)				$ 7.07
17	2155332		Bracket, Door Stop (chrome)		Appelez-nous	-
17	2155334		Bracket, Door Stop (black)		Appelez-nous	-
18	1107243		Retainer, Insert		Appelez-nous	-
19	1117952		Retainer, Insert		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
