SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow

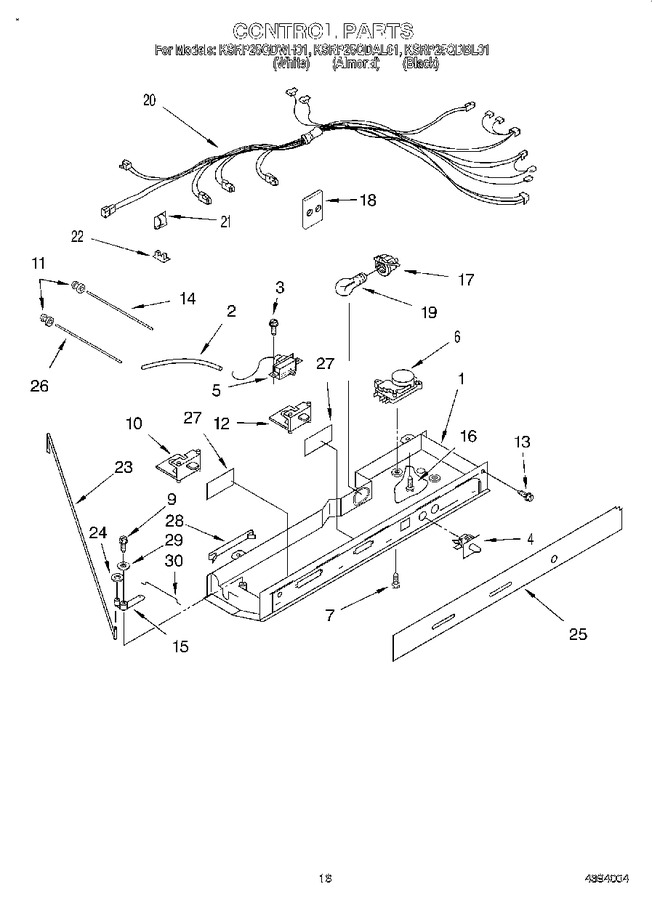

10 - Control


11 - Unit


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2181737		Control Box				$ 55.92
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 1115241)				$ 7.16
3	2006254		Screw (3)   (Replaces: 489214)				$ 11.82
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 36.36
5	2175515		Thermostat		Appelez-nous	-
6	W10822278		Defrost Timer (10 Hr.)   (Replaces: 2162046)			Immediately	$ 31.00
7	489392		Screw (2)   (Replaces: 489398)				$ 12.02
9	627068		Screw				$ 10.91
10	2181741		Slide, Air Control				$ 81.44
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 19.10
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 6.90
14	2179920		Light Bar (rc)				$ 37.08
15	2161306		Arm, Pivot				$ 9.65
16	WP488488		Screw (2)   (Replaces: 489290)				$ 6.91
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 99.14
18	2172931		Heat Shield				$ 63.34
19	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 10.17
20	2149186		Control Box Harness		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 6.98
22	1115375		Clip, Wiring				$ 11.15
23	2161308		Connecting Rod				$ 154.90
24	489391		Fastener, Push-on				$ 7.52
25	2175514		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2175513		Window (2)		Appelez-nous	-
28	1125811		Clip, Control Box		Appelez-nous	-
29	489203		Spring, Clip		Appelez-nous	-
30	2161307		Connecting Rod (short)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
