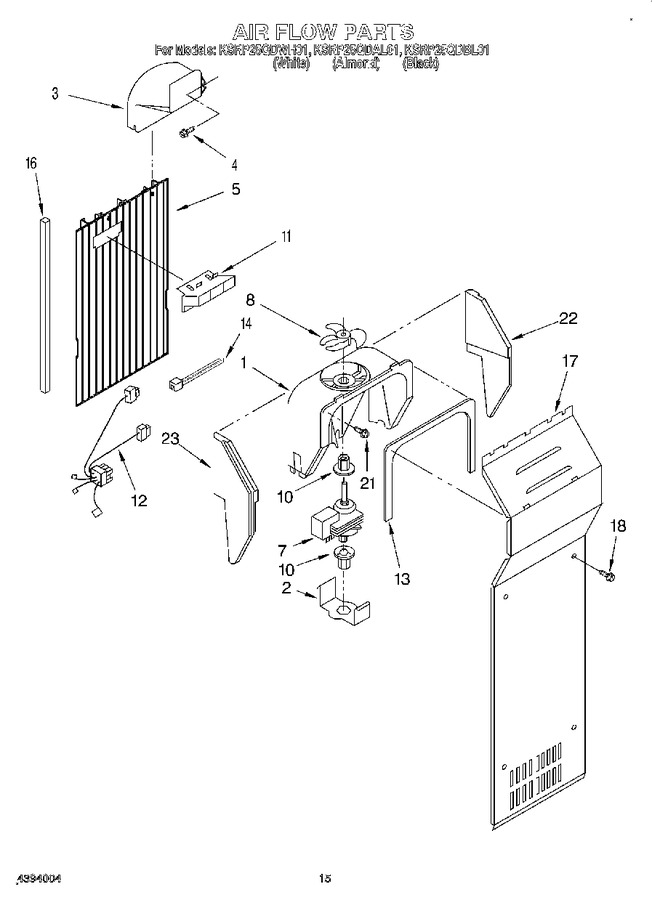

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Fan Scroll   (Replaces: 2155594)			Immediately	$ 100.77
2	2155590		Retainer Fan Motor				$ 5.83
3	2161231		Air Scoop				$ 42.67
4	WP488729		Screw   (Replaces: 489176)			Immediately	$ 7.01
5	2176072		Air Duct Freezer		Appelez-nous	-
7	4389144		Fan Motor   (Replaces: 2149299)			Immediately	$ 70.75
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 39.07
10	WP2176759		Grommet, Fan (2)   (Replaces: 2176759)				$ 6.99
11	1115381		Duct, Icemaker		Appelez-nous	-
12	2161478		Harness, Fan Evaporator, And Heater, Bi-metal		Appelez-nous	-
13	WP2155789		Gasket Cover   (Replaces: 2155789)				$ 7.01
14	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.11
16	WP2304241		Gasket   (Replaces: 2155782)			Immediately	$ 74.52
17	2155612		Cover, Evaporator		Appelez-nous	-
18	W11233072		Screw   (Replaces: 489355)			Immediately	$ 12.62
21	WP489478		Screw   (Replaces: 489242)				$ 6.98
22	4388358		Support, R.s.   (Replaces: 2161484)				$ 28.04
23	4388358		Support, L.s.   (Replaces: 2155766)				$ 28.04
