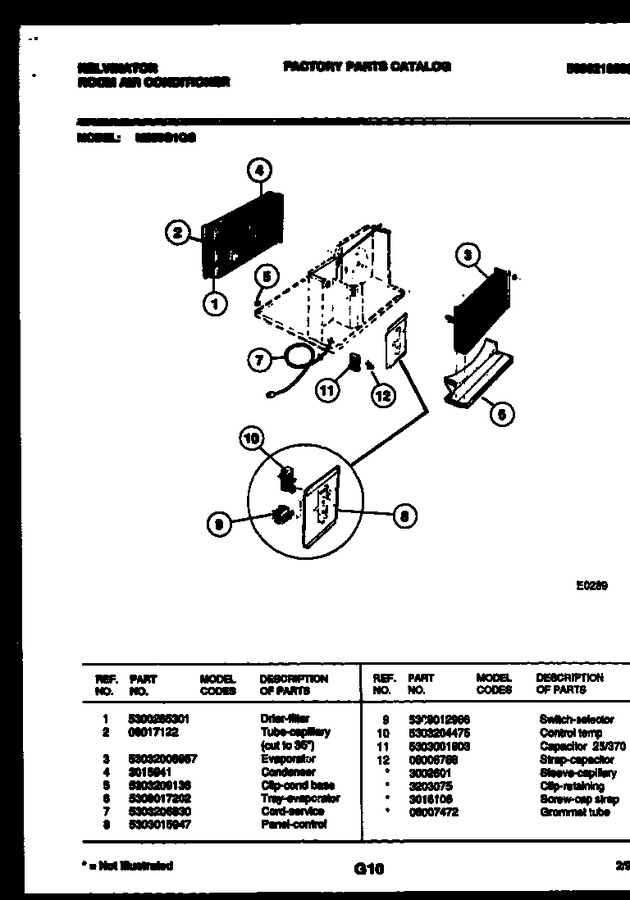

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 2 | 08017122 | Tube-capillary Cut To 35`` |
|
- | |||||
| 3 | 53032006967 | Evaporator |
|
- | |||||
| 4 | 3015941 | Condenser |
|
- | |||||
| 5 | 5303209136 | Clip-cond Base |
|
- | |||||
| 6 | 5308017202 | Tray-evaporator |
|
- | |||||
| 7 | 5303206830 | Cord-service |
|
- | |||||
| 8 | 5303015947 | Panel-control |
|
- | |||||
| 9 | 5308012966 | Switch-selector |
|
- | |||||
| 10 | 5303204475 | Control Temp |
|
- | |||||
| 11 | 5303001903 | Capacitor 25/370 |
|
- | |||||
| 12 | 08006788 | Strap-capacitor |
|
- | |||||
| *17411 | 3016106 | Screw-cap Strap |
|
- | |||||
| *17411 | 3203075 | Clip-retaining |
|
- | |||||
| *17411 | 3002601 | Sleeve-capillary |
|
- | |||||
| *17411 | 08007472 | Grommet-tube |
|
- |
