02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

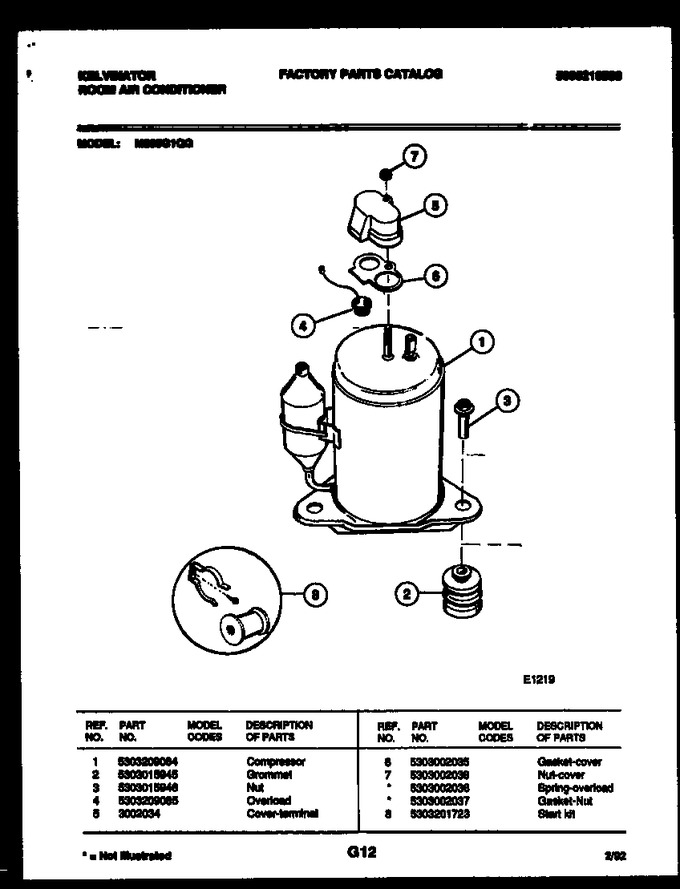

| 1 | 5303209084 | Compressor |
|
- | |||||
| 2 | 5303015945 | Grommet |
|
- | |||||
| 3 | 5303015946 | Nut |
|
- | |||||
| 4 | 5303209085 | Overload |
|
- | |||||
| 5 | 3002034 | Cover-terminal |
|
- | |||||
| 6 | 5303002035 | Gasket-cover |
|
- | |||||
| 7 | 5303002038 | Nut-cover |
|
- | |||||
| 8 | 5303201723 | Start Kit |
|
- | |||||
| 7A | 5303002036 | Spring-overload (non-illustrated) |
|
- | |||||
| 7B | 5303002037 | Gasket-nut (non-illustrated) |
|
- |
