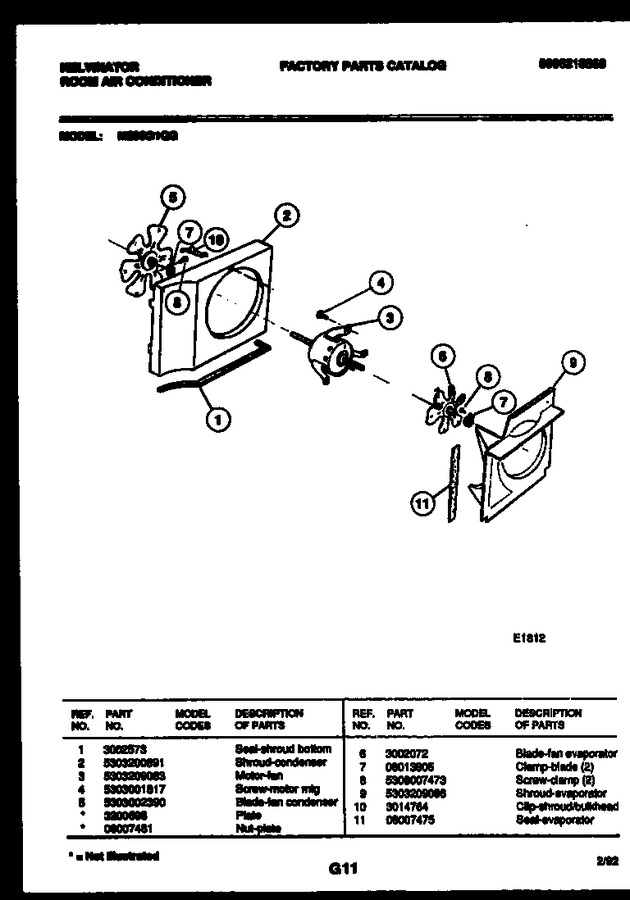

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3002573 | Seal - Shroud Bottom |
|
- | |||||
| 2 | 5303200891 | Shroud-condenser |
|
- | |||||
| 3 | 5303209083 | Motor-fan |
|
- | |||||
| 4 | 5303001817 | Screw-motor Mtg |
|
- | |||||
| 5 | 5303002390 | Blade-fan Condenser |
|
- | |||||
| 6 | 3002072 | Blade-fan Evaporator |
|
- | |||||
| 7 | 08013805 | Clamp-blade (2) |
|
- | |||||
| 8 | 5308007473 | Screw-clamp (2) |
|
- | |||||
| 9 | 5303209086 | Shroud-evaporator |
|
- | |||||
| 10 | 3014764 | Clip-shroud/bulkhead |
|
- | |||||
| 11 | 08007475 | Seal-evaporator Shroud |
|
- | |||||
| 5A | 3200698 | Plate (non-illustrated) |
|
- | |||||
| 5B | 08007481 | Nut |
|
$ 5.81 |
