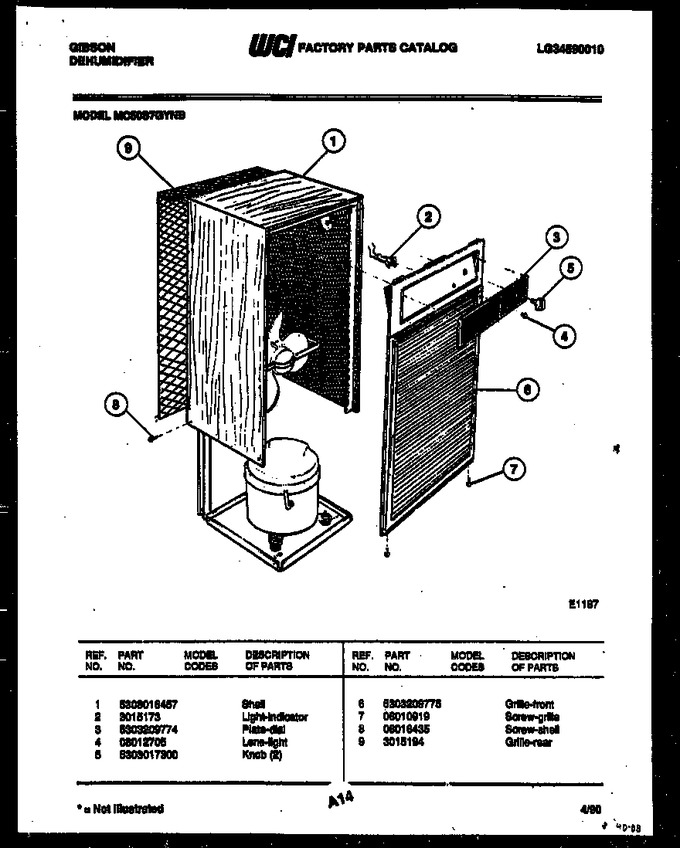

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308016457 | Shell |
|
- | |||||
| 2 | 3015173 | Light-indicator |
|
- | |||||
| 3 | 5303209774 | Plate-dial |
|
- | |||||
| 4 | 08012705 | Lens-light |
|
- | |||||
| 5 | 5303017300 | Knob (2) |
|
- | |||||
| 6 | 5303209775 | Grille-front |
|
- | |||||
| 7 | 08010919 | Screw-grille |
|
- | |||||
| 8 | 08016435 | Screw-shell |
|
- | |||||
| 9 | 3015194 | Grille-rear |
|
- |
