SELECT A DIAGRAM
02 - Cabinet And Control Parts
03 - Air Control Parts
04 - Water And Condensing Parts

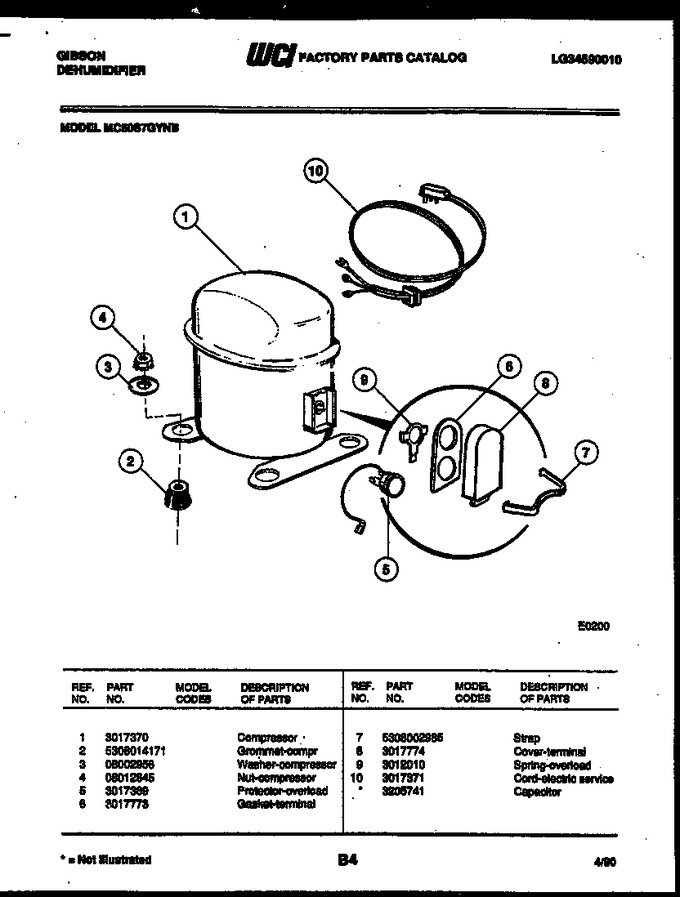

05 - Compressor Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017370 | Compressor |
|
- | |||||
| 2 | 5308014171 | Grommet-compr |
|
- | |||||
| 3 | 08002956 | Washer-compressor |
|
- | |||||
| 4 | 08012645 | Nut-compressor |
|
- | |||||
| 5 | 3017369 | Protector-overload |
|
- | |||||
| 6 | 3017773 | Gasket-terminal |
|
- | |||||
| 7 | 5308002985 | Strap |
|
- | |||||
| 8 | 3017774 | Cover-terminal |
|
- | |||||
| 9 | 3012010 | Spring-overload |
|
- | |||||
| 10 | 3017371 | Cord-electric Service |
|
- | |||||
| *28385 | 3205741 | Capacitor |
|
- |
