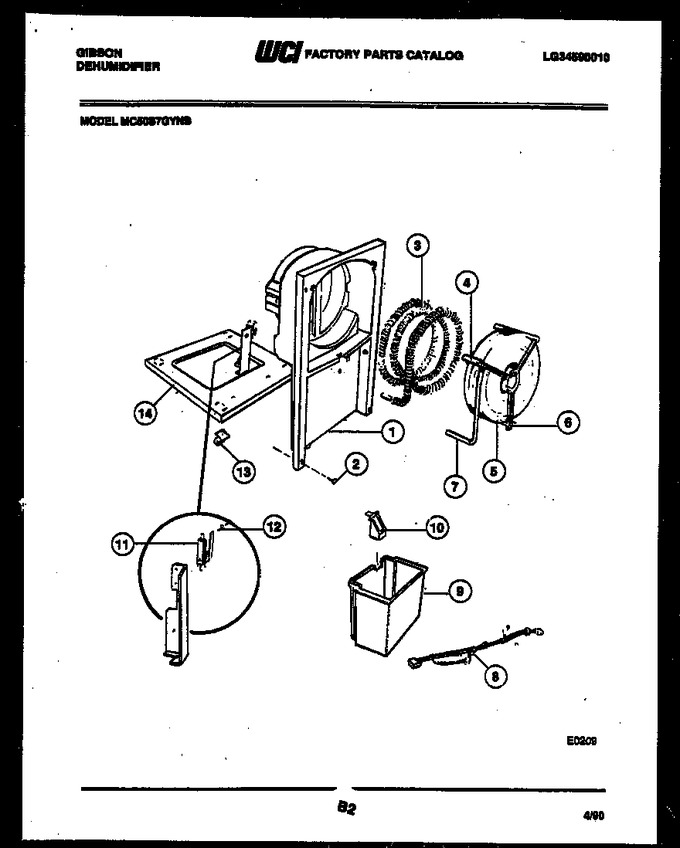

02 - Cabinet And Control Parts
03 - Air Control Parts
04 - Water And Condensing Parts
05 - Compressor Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08016450 | Shroud |
|
- | |||||
| 2 | 08010919 | Screw |
|
- | |||||
| 3 | 3015167 | Condenser |
|
- | |||||
| 4 | 08016455 | Clamp-evaporator Inner |
|
- | |||||
| 5 | 3015172 | Evaporator |
|
- | |||||
| 6 | 08016454 | Clamp-evaporator Outer |
|
- | |||||
| 7 | 5303001746 | Tube-capillary |
|
- | |||||
| 8 | 3017366 | Harness-wiring |
|
- | |||||
| 9 | 5308016465 | Container-water |
|
- | |||||
| 10 | 5308016445 | Float-container |
|
- | |||||
| 11 | 5308016437 | Switch-container |
|
$ 41.55 | |||||
| 12 | 08010919 | Screw |
|
- | |||||
| 13 | 5308012697 | Caster-base |
|
- | |||||
| 14 | 3015168 | Base-with Casters |
|
- | |||||
| 3A | 3012363 | Strainer-cond (non-illustrated) |
|
- |
