SELECT A DIAGRAM

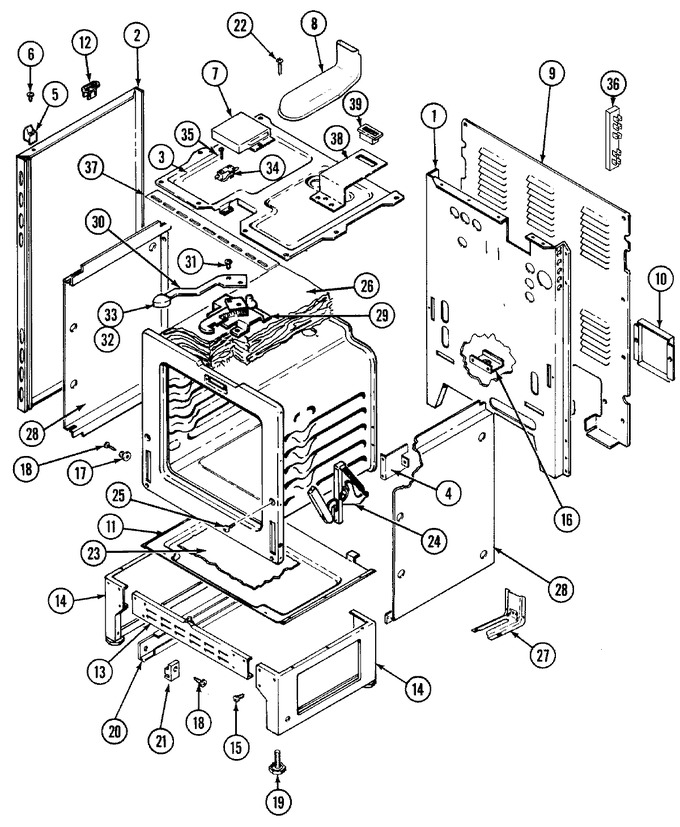

01 - Body


02 - Control Panel


03 - Door/drawer (3888vra,3888vrv-z,3888vrv)


04 - Drawer (3888vra,3888vrv)


05 - Oven


06 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F184-80		Back, Main		Appelez-nous	-
1	7403P160-60		Switch, Hi-limit		Appelez-nous	-
2	2618F085-71		Panel, Side (wht)		Appelez-nous	-
2	2618F099-71		Panel, Side (wht)		Appelez-nous	-
3	4011F207-19		Box, Burner		Appelez-nous	-
4	3807F400-51		Support,oven Rear		Appelez-nous	-
5	8010P087-60		Spacer, Main Top (lt)		Appelez-nous	-
5	8010P088-60		Spacer, Main Top (rt)		Appelez-nous	-
6	WP74004005		Screw   (Replaces: 7118P013-60)				$ 6.95
7	4005F398-80		Cover, Latch Assy.		Appelez-nous	-
8	4005F350-45		Cover Vent		Appelez-nous	-
9	4005F348-51		Cover, Main Back Wire		Appelez-nous	-
10	4005F427-51		Cover, Access		Appelez-nous	-
11	3804F109-51		Retainer, Bottom Insulation		Appelez-nous	-
12	8007P023-60		Bushing, Prop		Appelez-nous	-
13	4020F001-80		Pedestal, Front/rear		Appelez-nous	-
14	4020F002-80		Pedestal, Side		Appelez-nous	-
14	4020W007-80		Pedestal, Side		Appelez-nous	-
15	W11233072		Screw   (Replaces: 7101P290-60)			Immediately	$ 12.62
16	3605F174-51		Plate, Conduit Tubing		Appelez-nous	-
17	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)				$ 7.07
18	W11772394		Screw   (Replaces: 7101P300-60)			Immediately	$ 10.94
19	7101P306-60		Leg, Leveling		Appelez-nous	-
20	3406F028-51		Runner, Drawer		Appelez-nous	-
21	8004P025-60		Support, Drawer		Appelez-nous	-
22	7101P103-60		Screw		Appelez-nous	-
23	8312P058-60		Foil, Insulation Retainer		Appelez-nous	-
24	7106P033-60		Hinge, Door		Appelez-nous	-
25	WP4159193		Screw, Hinge   (Replaces: 7101P017-60)				$ 4.29
26	4804F015-60		Insulation, Back		Appelez-nous	-
26	4804F016-60		Insulation, Wrap		Appelez-nous	-
27	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)			Immediately	$ 4.69
27	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)				$ 26.33
28	3804F103-51		Retainer, Insulation (side)		Appelez-nous	-
29	7101P280-60		Screw W/washer (blk)		Appelez-nous	-
29	8002P025-60		Latch Assy.		Appelez-nous	-
30	8009P016-60		Lever, Lock		Appelez-nous	-
31	7109P015-60		Washer		Appelez-nous	-
31	WP4159193		Screw, Lever   (Replaces: 7101P230-60)				$ 4.29
32	7112P003-60		Clip, Latch Handle		Appelez-nous	-
33	7701P089-60		Handle, Latch (wht)		Appelez-nous	-
34	7403P228-60		Switch, Door Latch		Appelez-nous	-
35	7101P103-60		Screw		Appelez-nous	-
36	3801F302-45		Bracket, Ind.		Appelez-nous	-
36	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)			Immediately	$ 31.65
37	3801F305-80		Bracket, Main Top		Appelez-nous	-
38	3801F312-45		Bracket, Indicator Light		Appelez-nous	-
39	7407P097-60		Light, Indicator (hot Surface)		Appelez-nous	-
39	7407P089-60		Light, Indicator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
