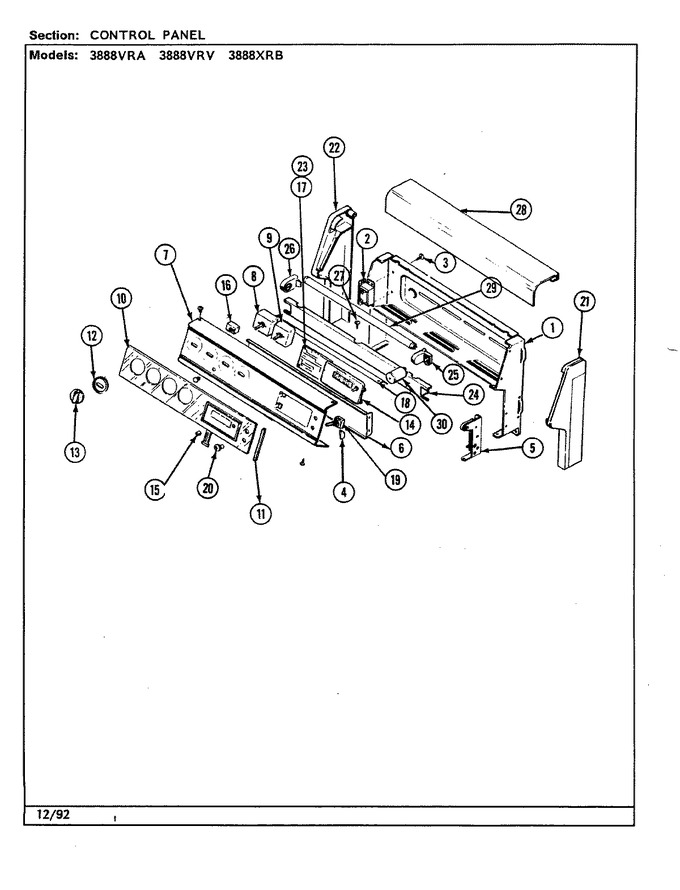

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer (3888vra,3888vrv-z,3888vrv)
04 - Drawer (3888vra,3888vrv)
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F089-51 | Housing, Backguard | 01 |
|
- | ||||
| 2 | 7412P007-60 | Ballast | 01 |
|
- | ||||
| 3 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 4 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 01 |
|
$ 6.98 | ||||
| 4 | 8010P083-60 | Spacer | 01 |
|
- | ||||
| 5 | 3807F423-51 | Support, Housing (rt) | 01 |
|
- | ||||
| 5 | 3807F424-51 | Support, Housing (lt) | 01 |
|
- | ||||
| 6 | 3802F087-51 | Brace, Lwr Bkgd | 01 |
|
- | ||||
| 7 | 7703P392-60 | Panel, Backguard (wht) | 01 |
|
- | ||||
| 7 | 7703P455-60 | Panel, Control (wht) | 06 |
|
- | ||||
| 8 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 01 |
|
Immediately | $ 35.10 | |||
| 9 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 01 |
|
Immediately | $ 57.78 | |||
| 10 | 4876S014-59 | Panel, Control Assy----na | 01 |
|
- | ||||
| 10 | 4876S018-59 | Glass, Control Assy. (wht) | 06 |
|
- | ||||
| 11 | 7720P160-60 | Trim, Glass Retainer (wht) | 01 |
|
- | ||||
| 12 | 7740P026-60 | Bezel, Knob (wht) | 01 |
|
- | ||||
| 13 | 7731P081-60 | Knob, Switch (wht) | 01 |
|
- | ||||
| 14 | 7601P209-60 | Clock | 06 |
|
- | ||||
| 14 | 7601P171-60 | Clock | 01 |
|
- | ||||
| 15 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P432-60) | 01 |
|
$ 12.13 | ||||
| 16 | 7407P090-60 | Lamp Signal | 01 |
|
- | ||||
| 17 | 7428P013-60 | Relay Board | 01 |
|
- | ||||
| 18 | 3604F201-80 | Shield, Sight | 01 |
|
- | ||||
| 19 | 7403P204-60 | Switch, Push (wht) | 01 |
|
- | ||||
| 20 | 7214P023-60 | Sleeve, Switch (wht) | 01 |
|
- | ||||
| 21 | 7726P073-60 | End Cap (rt-wht) | 01 |
|
- | ||||
| 22 | 7726P074-60 | End Cap (lt-wht) | 01 |
|
- | ||||
| 22 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 23 | 8004P020-60 | Support, Relay Board | 01 |
|
- | ||||
| 24 | 3807F406-71 | Holder, Lamp (wht) | 01 |
|
- | ||||
| 25 | 7408P029-60 | Receptacle, Light (rt) | 01 |
|
- | ||||
| 26 | 7408P030-60 | Receptacle, Snap-in (lt) | 01 |
|
- | ||||
| 27 | WPY706189 | Screw (Replaces: 7118P019-60) | 01 |
|
Immediately | $ 6.47 | |||
| 28 | 7724P059-60 | Cover, Light (wht)----na | 01 |
|
- | ||||
| 29 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 01 |
|
Immediately | $ 121.45 | |||
| 30 | 5170P124-60 | Harness Ctrl To Relay | 01 |
|
- | ||||
| 30 | 5170D122-60 | Harness Bkgd | 01 |
|
- | ||||
| 30 | 7401P017-60 | Block, Disconnect (pin) | 01 |
|
- | ||||
| 30 | 5175D063-60 | Harness, Panel To Top | 01 |
|
- | ||||
| 30 | 5170P162-60 | Harness, Sensor & Lock | 06 |
|
- | ||||
| 30 | 5170P123-60 | Harness Sensor | 01 |
|
- | ||||
| 30 | 5170D165-60 | Harness | 06 |
|
- | ||||
| 30 | 7415P001-60 | Starter | 01 |
|
- | ||||
| 31 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- | ||||
| 31 | 8113P008-60 | Manual, Use & Care | 01 |
|
- |
