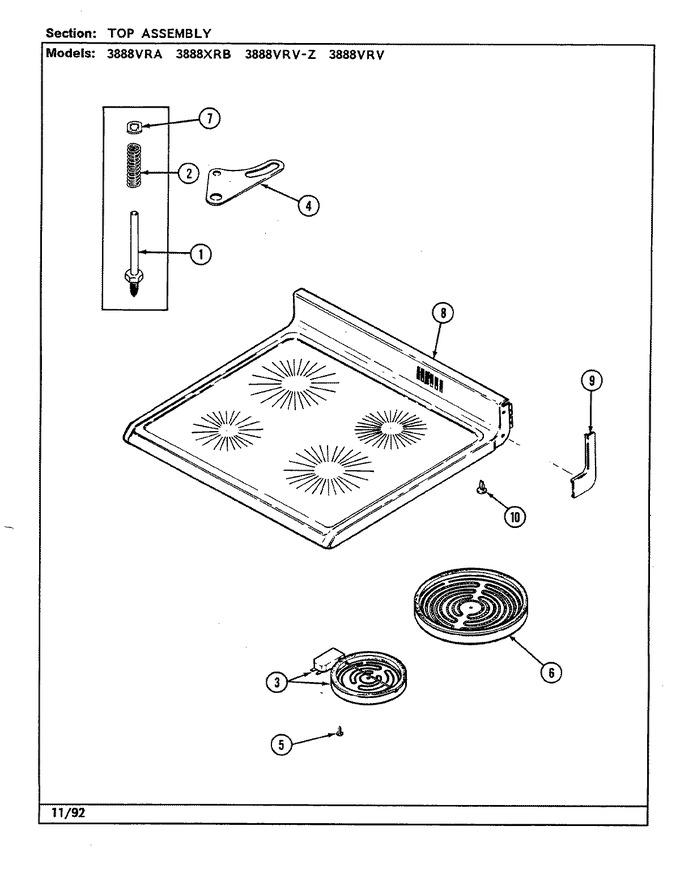

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer (3888vra,3888vrv-z,3888vrv)
04 - Drawer (3888vra,3888vrv)
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7113P013-60 | Pin, Element | 01 |
|
- | ||||
| 2 | 7803P066-60 | Spring, Element Support | 01 |
|
- | ||||
| 3 | 12500041 | Limiter Kit (6``) | 01 |
|
- | ||||
| 3 | W10823704 | Element W/receptacle (6``) (Replaces: 7406P074-60) | 01 |
|
Immediately | $ 309.01 | |||
| 4 | 3819F013-45 | Clip, Element | 01 |
|
- | ||||
| 5 | WP74004005 | Screw (Replaces: 7101P076-60) | 01 |
|
$ 6.95 | ||||
| 6 | W10823707 | Element W/receptacle (8``) (Replaces: 7406P073-60) | 01 |
|
Immediately | $ 316.13 | |||
| 6 | 12500040 | Limiter Kit (8``) | 01 |
|
- | ||||
| 7 | 7112P091-60 | Clip, Retainer | 01 |
|
- | ||||
| 8 | 5706S016-81 | Top Assy (wht Glass/wht Frame) | 01 |
|
- | ||||
| 8 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 01 |
|
Immediately | $ 4.86 | |||
| 9 | 7746P033-60 | End Cap, Top (lt-wht) | 01 |
|
- | ||||
| 9 | 7746P032-60 | End Cap, Top (rt-wht) | 01 |
|
- | ||||
| 10 | 8016P013-60 | Glide | 01 |
|
- | ||||
| 10 | 8114P348-60 | Cover, Hinge Support | 01 |
|
- |
