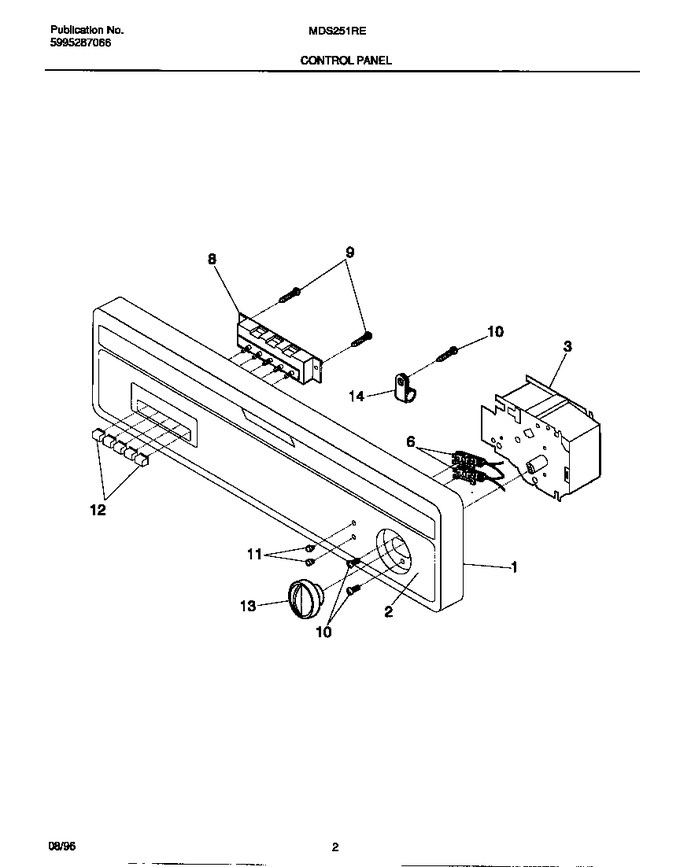

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154220101		Panel-control, Black		Appelez-nous	-
2	154233001		Insert-control Pnl		Appelez-nous	-
3	154220301		Timer				$ 68.15
6	5300809317		Light Assy		Appelez-nous	-
8	154220401		Switch-selector,5 Button		Appelez-nous	-
9	154779601		Screw-switch Mtg, (2)   (Replaces: 5303318719)				$ 1.42
10	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
11	5300809036		Lens-light				$ 20.90
12	154239401		Pushbutton, Black		Appelez-nous	-
13	154239301		Knob-timer, Black				$ 48.46
14	240396801		Clamp   (Replaces: 5300808442)				$ 19.13
*72320	154131203		Shield-timer		Appelez-nous	-
*72321	154242201		Shield-switch		Appelez-nous	-
*72322	5300809144		Shield - Wire		Appelez-nous	-
*72323	5300809175		Screw 8b X 7/16``		Appelez-nous	-
*72324	154234601		Wiring Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
