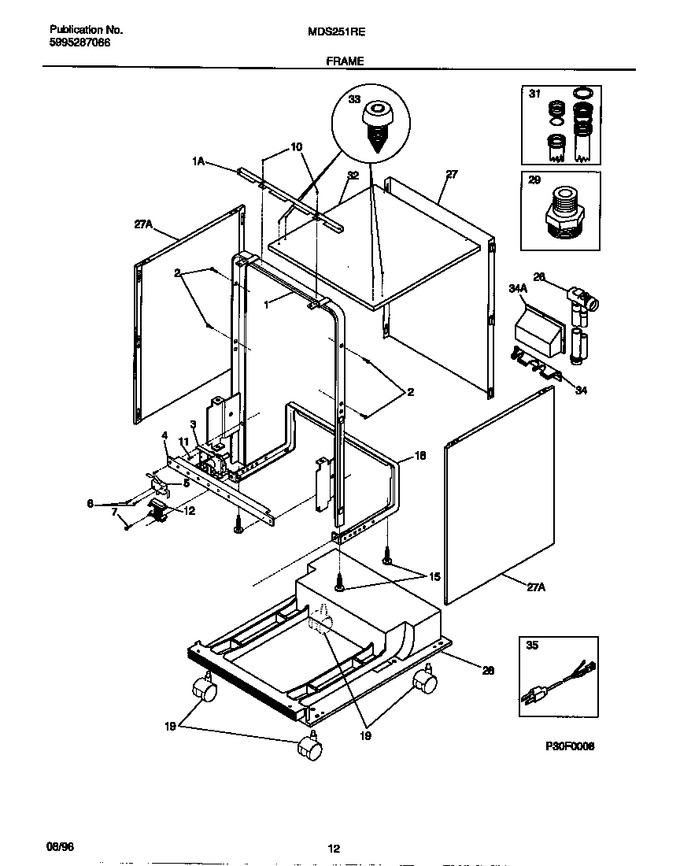

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154236102		Bracket-front Frame		Appelez-nous	-
1	154218801		Front Frame Assy		Appelez-nous	-
2	154041001		Screw,plask 1 ,10-10 X 9/16		Appelez-nous	-
3	154637401		Valve-water   (Replaces: 154219602)			Immediately	$ 21.36
4	154219101		Brace-front		Appelez-nous	-
5	154773201		Bracket-float Switch (not Illustrated)   (Replaces: 154209801)			Immediately	$ 55.29
5	154225501		Switch,float				$ 84.68
6	154025901		Screw, Truss Head, 10 X 0.625		Appelez-nous	-
7	5300804672		Screw-relay		Appelez-nous	-
10	154419403		Screw,8a X .375``   (Replaces: 5300808658)				$ 13.10
11	134154100		Screw-10-32 X 3/8   (Replaces: 154200701)				$ 13.46
12	5303351059		Relay-motor				$ 8.35
15	154210902		Screw-leveling		Appelez-nous	-
16	154219001		Frame-rear		Appelez-nous	-
19	154280201		Caster, 30				$ 49.51
26	154187104		Hose & Coupler Assy				$ 203.91
27	154229602		Wrapper,white ,back		Appelez-nous	-
27	154229701		Wrapper, Side, (2)		Appelez-nous	-
28	154242401		Base And Weight Assy		Appelez-nous	-
29	154242501		Adapter-water Valve				$ 83.53
31	5303304813		Faucet Adapter Assy		Appelez-nous	-
32	154241803		Top, Gray		Appelez-nous	-
33	5300807270		Screw, (6) (not Illustrated)				$ 6.72
33	154241701		Screw, Top		Appelez-nous	-
34	154249801		Pocket,upper				$ 31.03
34	154249701		Pocket,lower		Appelez-nous	-
35	154253001		Cord-electric				$ 118.76
*72331	154200601		Screw-10-16 X 3/8				$ 7.98
*72332	5300807373		Washer		Appelez-nous	-
*72333	5300807573		Bushing, Strain Relief, Power Cord		Appelez-nous	-
