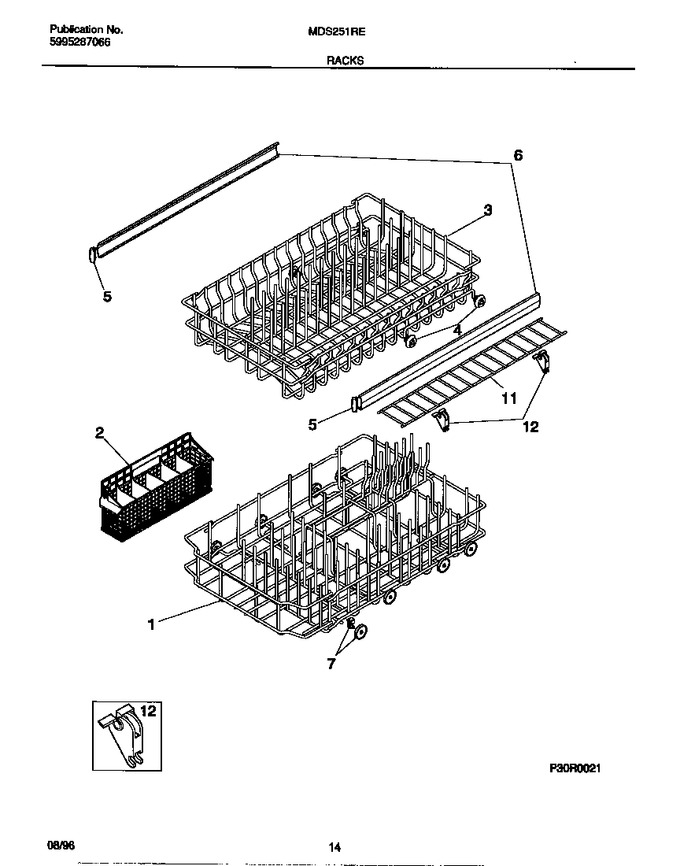

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154239101 | Rack Assy-lower |
|
- | |||||
| 2 | 5304509753 | Basket,silverware (Replaces: 5300808994) |
|
Immediately | $ 36.87 | ||||
| 3 | 5304525235 | Rack Assy-upper (Replaces: 154239001) |
|
$ 356.99 | |||||
| 4 | 5304535381 | Wheel & Bracket Assy, Upper Rack (Replaces: 5300809974) |
|
Immediately | $ 10.05 | ||||
| 5 | 5300809927 | Cap,slide ,(4) |
|
Immediately | $ 3.69 | ||||
| 6 | 154597801 | Slide,rack ,(2) (Replaces: 154232701) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,lower Rack (Replaces: 154174501) |
|
Immediately | $ 12.75 | ||||
| 11 | 154225203 | Shelf-cup |
|
- | |||||
| 12 | 154238901 | Bracket-shelf Cup |
|
- |
