SELECT A DIAGRAM

01 - Cover

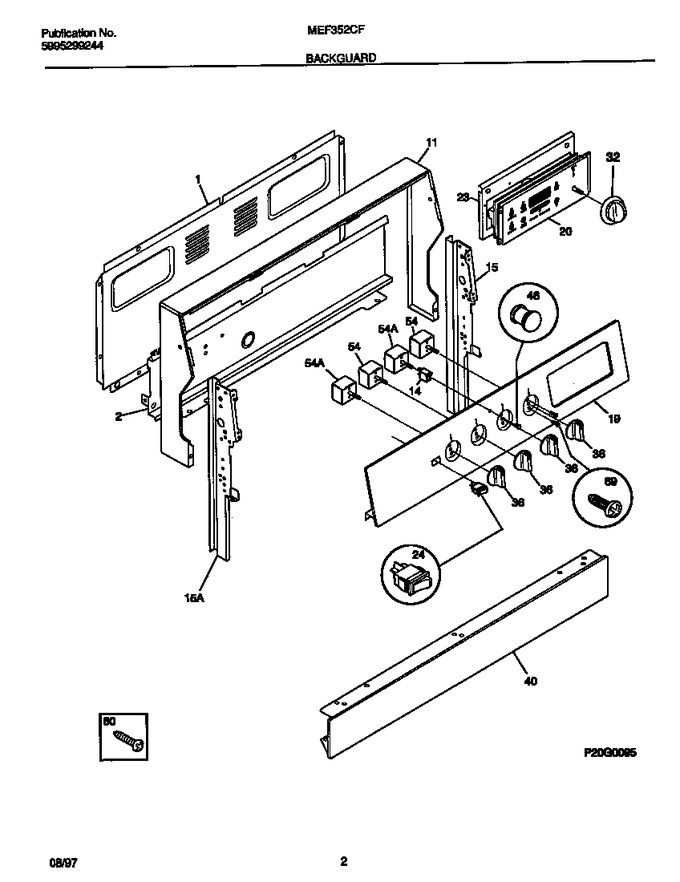

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316061842		Trim-wrapper, White		Appelez-nous	-
14	316022503		Light/lamp, Indicator, Yellow, 250 V			Immediately	$ 70.16
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316076565		Panel-control, Metal		Appelez-nous	-
20	316101103		Clock/timer, Trimline, Dial 3				$ 299.30
20	316101507		Overlay-clock (not Illustrated)		Appelez-nous	-
23	316100400		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
32	316101300		Knob-thermostat		Appelez-nous	-
36	316015204		Knob-control, White, (4)		Appelez-nous	-
40	316062330		Panel-manifold, White		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red, (2)		Appelez-nous	-
54	316436001		Switch-8`` Element, (2)   (Replaces: 316021501)			Immediately	$ 51.68
54	5303935086		Switch-6`` Element, (2)   (Replaces: 316021500)			Immediately	$ 51.95
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
69	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
*11480	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*11481	316096901		Nameplate, White				$ 9.82

    View Diagram in Separate Window       Print Part List
