SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

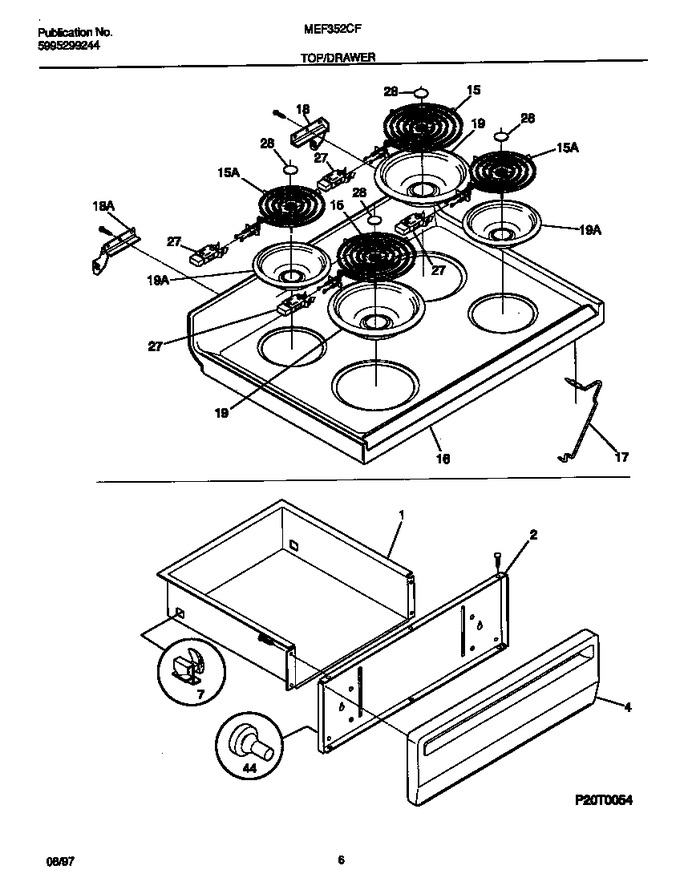

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
4	316021109		Screw-drawer Pnl (not Illustrated)   (Replaces: 316021112)			Immediately	$ 27.50
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	5308011964		Element-surface, Large/8 Inch, (2)				$ 209.08
15	5308011963		Element-surface, Small/6 Inch, (2)		Appelez-nous	-
16	316202388		Main Top, White   (Replaces: 316020907)				$ 407.24
17	316057601		Rod-maintop Support				$ 64.49
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
19	L304430992		Pan-surface Element, Small/6 Inch   (Replaces: 5303935057)				$ 9.59
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303935054)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
44	3131903		Bumper				$ 55.36
*11485	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*11486	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*11487	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*11488	316089600		Spacer-drawer, (2)		Appelez-nous	-
*11489	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*11490	5308014215		Screw,6-20 X 5/16 ,(4)				$ 2.28
*11491	316058600		Clip-surface Element, (4)		Appelez-nous	-
*11492	316001725		Harness-wiring, Surface Element		Appelez-nous	-
