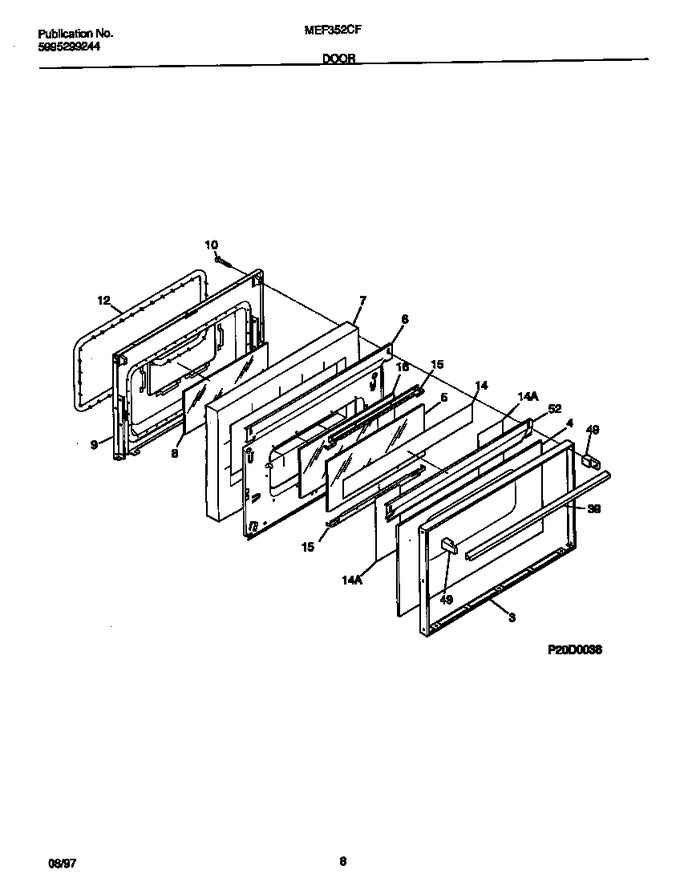

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067804		Trim-oven Door, White		Appelez-nous	-
4	316089005		Glass-oven Door, White, Outer		Appelez-nous	-
5	316088700		Glass-oven Door, Inner				$ 70.17
6	316088401		Shield-wool		Appelez-nous	-
7	316076403		Insulation-door		Appelez-nous	-
8	316088600		Glass-oven Door, Airwash				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303131601		Seal-oven Door				$ 374.63
14	3131361		Reflector, Aluminum Foil		Appelez-nous	-
14	3131360		Reflector, Aluminum Foil		Appelez-nous	-
15	316081401		Bracket-glass Mtg		Appelez-nous	-
16	316085700		Glass-oven Door, Heat Barrier		Appelez-nous	-
39	316545301		Handle-door, White, Oven   (Replaces: 316020202)			Immediately	$ 130.85
39	316008401		Washer, 3/4 X 1/4, Steel, (2) (not Illustrated)				$ 11.34
49	316020101		End Cap, White, (2)		Appelez-nous	-
52	316081301		Shield-oven Door, White, Top				$ 85.94
*11493	316065301		Plate Warning/caution		Appelez-nous	-
*11494	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*11495	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*11496	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*11497	5303285179		Screw-oven Door, Wafer Head, 8-32t X 1/2, Black				$ 13.46
