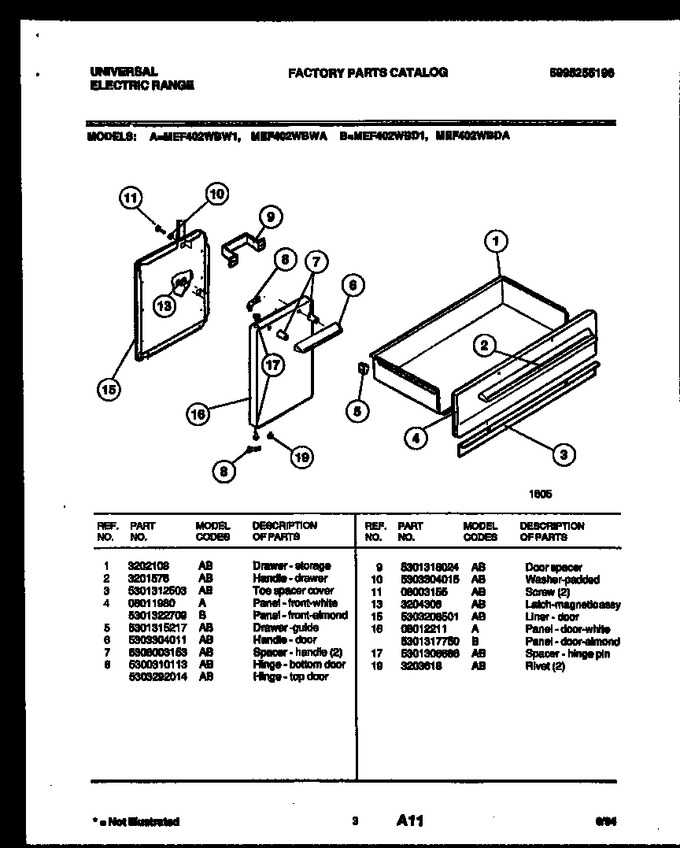

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer, Storage		Appelez-nous	-
2	3201576		Handle-drawer		Appelez-nous	-
3	5301312503		Toe Spacer Cover		Appelez-nous	-
4	08011980		Panel - Front (white)		Appelez-nous	-
5	5301315217		Drawer - Guide		Appelez-nous	-
6	5303304011		Handle - Door		Appelez-nous	-
7	5308003153		Spacer-handle, (2)		Appelez-nous	-
8	5300310113		Hinge - Bottom Door		Appelez-nous	-
9	5301318024		Door Spacer		Appelez-nous	-
10	5303304015		Washer, Padded		Appelez-nous	-
11	08003155		Screw (2)		Appelez-nous	-
13	3204306		Latch - Magnetic Assy		Appelez-nous	-
15	5303208501		Liner - Door		Appelez-nous	-
16	08012211		Panel - Door-white		Appelez-nous	-
17	5301306686		Spacer-hinge Pin		Appelez-nous	-
19	3203618		Rivet (2)		Appelez-nous	-
8A	5303292014		Hinge - Top Door		Appelez-nous	-
