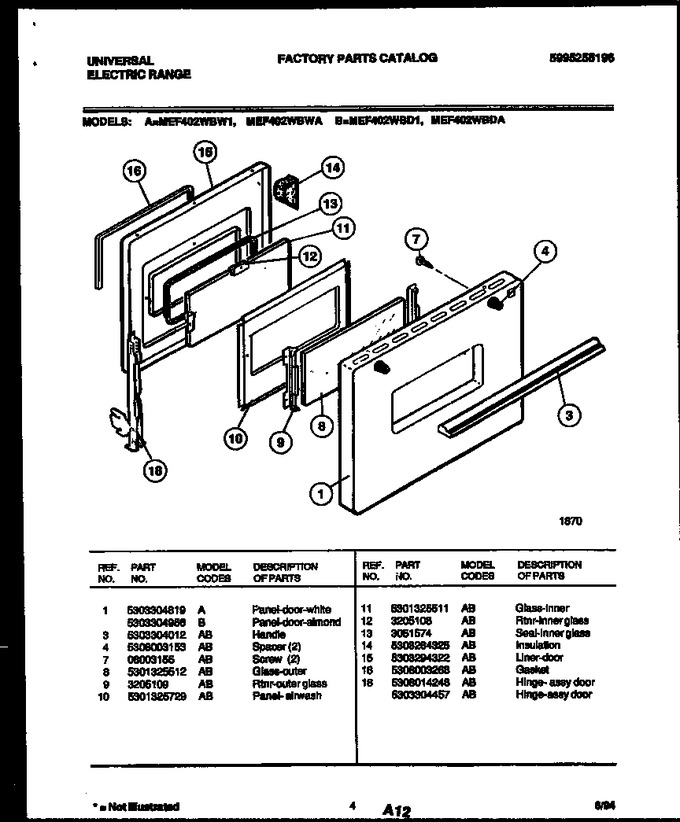

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303304819 | Panel-door-white |
|
- | |||||
| 3 | 5303304012 | Handle |
|
- | |||||
| 4 | 5308003153 | Spacer (2) |
|
- | |||||
| 7 | 08003155 | Screw (2) |
|
- | |||||
| 8 | 5301325512 | Glass - Outer |
|
- | |||||
| 9 | 3205109 | Rtnr-outer Glass |
|
- | |||||
| 10 | 5301325729 | Panel-airwash |
|
- | |||||
| 11 | 5301325511 | Glass, Inner |
|
- | |||||
| 12 | 3205108 | Rtnr-inner Glass |
|
- | |||||
| 13 | 3051574 | Seal, Inner Glass |
|
$ 36.58 | |||||
| 14 | 5303284325 | Insulation |
|
- | |||||
| 15 | 5303294322 | Liner-door |
|
- | |||||
| 16 | 5308003268 | Gasket |
|
- | |||||
| 18 | 5308014248 | Hinge-assy Door |
|
- | |||||
| 18 | 5303304457 | Hinge-assy Door |
|
- |
