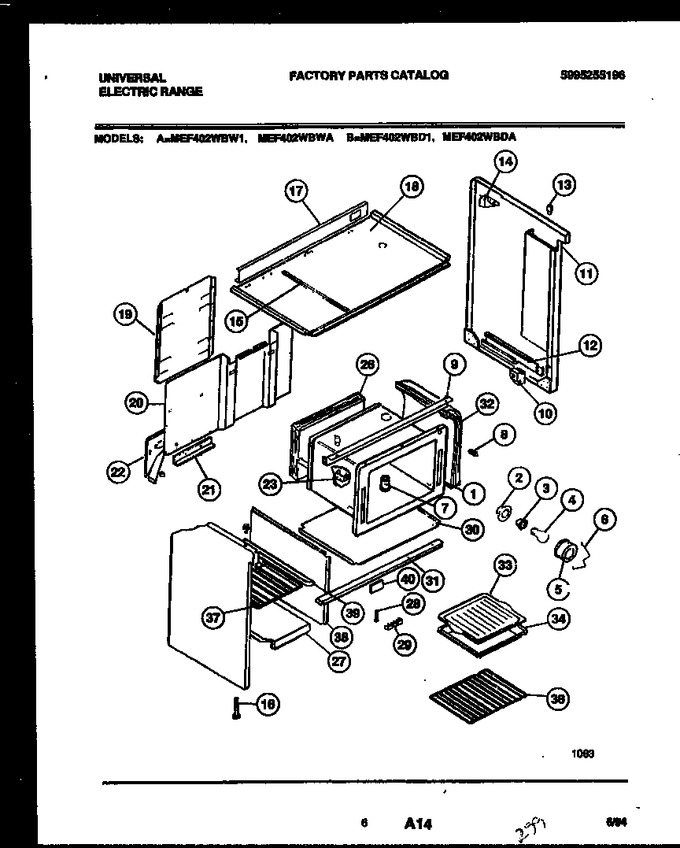

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303292166 | Oven Assembly-right |
|
- | |||||
| 2 | 3051511 | Housing-light |
|
$ 60.22 | |||||
| 3 | 316116400 | Oven Lamp Receptacle (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 4 | 40A15 | Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 5 | 5304524341 | Oven Light Cover (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 6 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 7 | 5301311218 | Tube - Oven Light |
|
- | |||||
| 8 | 5301314211 | Switch-oven Light |
|
$ 95.29 | |||||
| 9 | 5303294354 | Bracket - Cooktop |
|
- | |||||
| 10 | 3051654 | Drawer-guide |
|
- | |||||
| 11 | 5308012527 | Panel-end Rh (white) |
|
- | |||||
| 12 | 5308015746 | Rail-drwr Rh |
|
- | |||||
| 13 | 5308003107 | Bumper-cooktop |
|
- | |||||
| 14 | 3204821 | Gusset |
|
- | |||||
| 15 | 3051554 | Cooktop Support Rod |
|
- | |||||
| 16 | 5303205540 | Screw-levelling (4) |
|
- | |||||
| 17 | 5303304029 | Shield-wire |
|
- | |||||
| 18 | 5303294355 | Panel-sub Top |
|
- | |||||
| 19 | 5303051856 | Cover, Wire |
|
- | |||||
| 20 | 3204827 | Back, Range |
|
- | |||||
| 21 | 5301307085 | Support-gusset |
|
- | |||||
| 22 | 3204822 | Gusset, Rear, Rh |
|
- | |||||
| 23 | 3051552 | Brkt, Thermobulb |
|
- | |||||
| 27 | 08011951 | Panel - Bottom |
|
- | |||||
| 28 | 5301145190 | Plate-ground |
|
- | |||||
| 29 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 30 | 3206275 | Panel, Bottom |
|
- | |||||
| 31 | 08011954 | Channel - Oven Supt |
|
$ 47.60 | |||||
| 32 | 3051521 | Insul - Oven Wrap |
|
- | |||||
| 33 | 5303293415 | Broiler Grill |
|
- | |||||
| 34 | 5303293416 | Pan-broiler |
|
- | |||||
| 36 | 5303300147 | Self-offset |
|
- | |||||
| 37 | 08011960 | Rack - Comp |
|
- | |||||
| 38 | 08016542 | Partition - Cent |
|
- | |||||
| 39 | 5301315199 | Glide-storage Rack |
|
- | |||||
| 40 | 3204318 | Plate-strike |
|
- | |||||
| *10535 | 5303304030 | Bracket-backsplash |
|
- | |||||
| *10535 | 3934058 | Anti-tip Kit |
|
$ 98.75 | |||||
| *10535 | 211947-1090 | Wiring Diagram (not For Purchase) |
|
- | |||||
| 11A | 5308012528 | Panel-end Lh (white) |
|
- | |||||
| 12A | 3051652 | Rail-drwr Lh |
|
- | |||||
| 22A | 3204823 | Gusset, Rear, Lh |
|
- |
