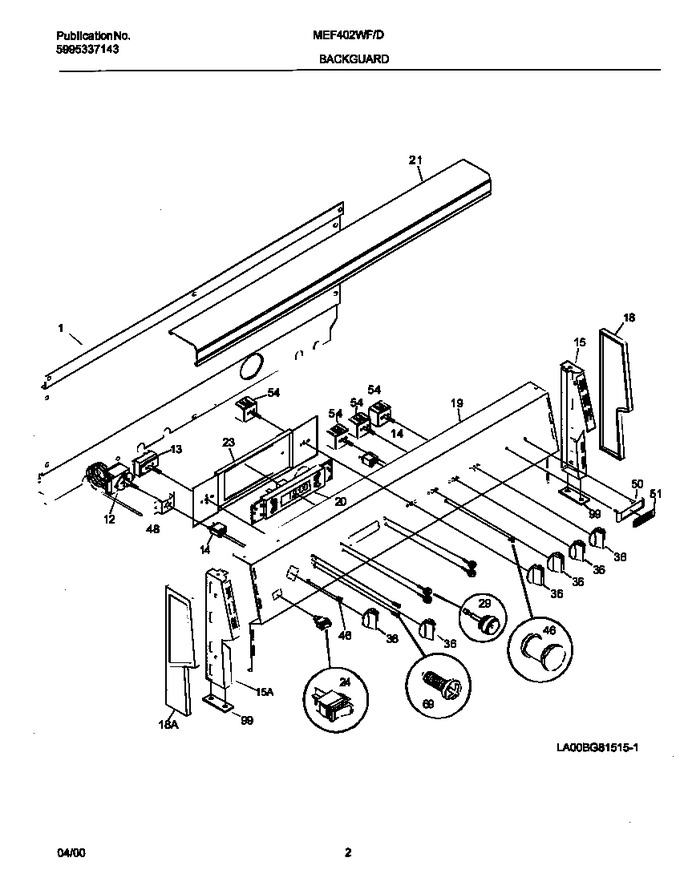

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318086800		Shield Backguard		Appelez-nous	-
12	318059100		Thermostat-oven		Appelez-nous	-
13	08015934		Switch, Selector		Appelez-nous	-
14	5303323991		Light/lamp,indicator				$ 26.25
15	5303304001		Bracket-endcap, Lh				$ 5.62
15	5303304000		Bracket-endcap, Rh				$ 7.14
18	5303304540		End Cap, Rh		Appelez-nous	-
18	5303304541		End Cap, Lh		Appelez-nous	-
19	318005724		Panel-control		Appelez-nous	-
20	318184800		Clock/timer		Appelez-nous	-
21	318051301		Trim-backguard, Top		Appelez-nous	-
23	318015028		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
36	5303304954		Knob-control, (6)		Appelez-nous	-
46	5308006417		Lens-light/lamp, Indicator, Red, (2)				$ 19.06
48	318055300		Spacer,thermo Bracket		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
51	316095401		Nameplate-tappan		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
99	5303304544		Spacer		Appelez-nous	-
*36000	08002868		Screw 10 X 24 X 1/2				$ 14.18
*36001	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*36002	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*36003	5303308450		Screw, 8 X 3/8		Appelez-nous	-
*36004	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
*36005	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
*36006	5303325982		Nut, 10-32		Appelez-nous	-
*36007	318083142		Wiring Harness		Appelez-nous	-
54A	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
54B	318120500		Switch-surface Unit				$ 186.80
