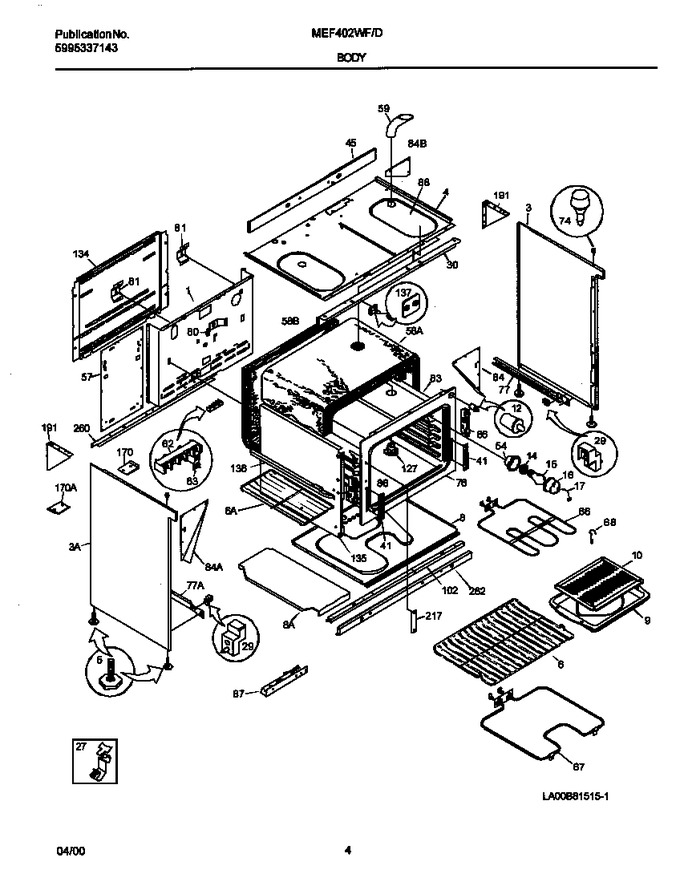

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066402 | Back-main |
|
- | |||||
| 3 | 5308012529 | Panel-bodyside, Almond, Rh |
|
- | |||||
| 3 | 318066004 | Panel-bodyside, Almond, Lh |
|
- | |||||
| 4 | 318073705 | Burner Box |
|
- | |||||
| 5 | 318175510 | Screw-levelling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 318025314 | Rack-oven (Replaces: 5303310522) |
|
Immediately | $ 148.70 | ||||
| 6 | 08011960 | Rack-oven, Small |
|
- | |||||
| 8 | 5303326189 | Panel-oven Bottom |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer Lenz |
|
- | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 29 | 3051654 | Guide-drawer, Front |
|
- | |||||
| 30 | 318023907 | Bracket-maintop |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 45 | 318057401 | Shield-wire |
|
- | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 57 | 318055700 | Panel-back |
|
- | |||||
| 58 | 5303310516 | Insulation, Oven Back |
|
- | |||||
| 58 | 5303310519 | Insulation, Oven Wrapper |
|
- | |||||
| 59 | 318072501 | Tube-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 63 | 5303310517 | Plate,ground Strap |
|
- | |||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | 318255006 | Element-bake (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 74 | 5308003107 | Spacer-cooktop |
|
- | |||||
| 76 | 318056004 | Frame-front |
|
- | |||||
| 77 | 318018001 | Rail-drawer Lh |
|
- | |||||
| 77 | 318018000 | Rail-drawer Rh |
|
- | |||||
| 80 | 5303324473 | Bracket-oven |
|
- | |||||
| 81 | 5303301261 | Spring,oven |
|
- | |||||
| 83 | 318089600 | Liner-oven Assy |
|
- | |||||
| 84 | 5303326184 | Gusset-rear,rh |
|
- | |||||
| 84 | 5303326185 | Gusset-rear,lh |
|
- | |||||
| 84 | 318055901 | Gusset-rear |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 87 | 318111800 | Plate-mounting,cord Set |
|
- | |||||
| 102 | 318111901 | Support Oven Front |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 132 | 5303310515 | Cover-wiring |
|
$ 368.97 | |||||
| 133 | 3051554 | Rod-maintop Support |
|
- | |||||
| 135 | 318072401 | Partition-center |
|
- | |||||
| 136 | 5301315199 | Glide-storage Rack |
|
- | |||||
| 137 | 3204318 | Plate-strike |
|
- | |||||
| 184 | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| 191 | 5303304030 | Bracket Corner |
|
- | |||||
| 217 | 316042301 | Plate-warning,217 |
|
- | |||||
| 260 | 318055500 | Support-gusset |
|
- | |||||
| 262 | 08011954 | Support-oven Front |
|
$ 47.60 | |||||
| *36008 | 3201899 | Washer,hinge Assy |
|
- | |||||
| *36009 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *36010 | 08016432 | Screw,truss Head ,8-18 X 0.375 ,(4) |
|
- | |||||
| *36011 | 318086002 | Flat Washer |
|
- | |||||
| *36012 | 5303051099 | Nut, Hex, 10-32 |
|
- | |||||
| *36013 | 5303131766 | Screw, Top Trim, 6-32 X 3/8 |
|
$ 10.87 | |||||
| *36014 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *36015 | 5303307980 | Screw, 8-32 X 7/16 |
|
Immediately | $ 14.18 | ||||
| *36016 | 316205500 | Nut, Hex, 10-32 (Replaces: 5303308427) |
|
$ 11.34 | |||||
| *36017 | 5303311306 | Screw,8-18 X 0.375 |
|
- | |||||
| *36018 | 5303323129 | Screw,8 X 3/4 |
|
- | |||||
| *36019 | 5303323133 | Screw < 8-18 X 1/2 >,8-18 X 1/2 |
|
- | |||||
| *36020 | 5305151612 | Nut |
|
- | |||||
| 10A | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 10B | 5303323139 | Screw,10-24 X 29/32 |
|
$ 13.46 | |||||
| 170A | 318175700 | Bracket,anti-tip ,rh |
|
- | |||||
| 170B | 318175701 | Bracket,anti-tip ,lh |
|
- |
