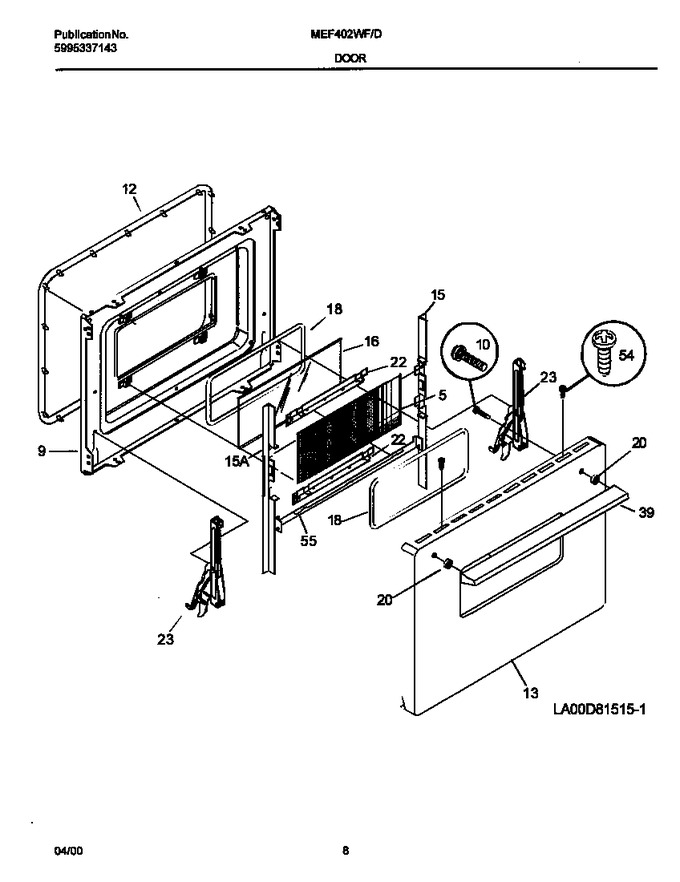

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303310508		Glass-oven Door,tinted ,inner		Appelez-nous	-
9	318048707		Liner-oven Door		Appelez-nous	-
10	5303317085		Screw-handle		Appelez-nous	-
12	318053103		Seal-oven Door			Immediately	$ 150.03
13	318009102		Panel-oven Door		Appelez-nous	-
15	5303311137		Bracket-glass Mtg, Lh		Appelez-nous	-
15	318024002		Bracket-glass Mtg, Rh		Appelez-nous	-
16	318041620		Glass-oven Door,heat Barrier				$ 906.47
18	5303310505		Seal-rope		Appelez-nous	-
20	5303310504		Spacer-door Handle,(2)		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	5303325091		Hinge-oven Door		Appelez-nous	-
39	5303304012		Handle-door, Oven		Appelez-nous	-
54	5303317975		Screw < 10 X 1/2 >,10 X 1/2		Appelez-nous	-
55	318122300		Bracket-glass				$ 11.39
*36028	3201899		Washer,hinge Assy		Appelez-nous	-
*36029	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*36030	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*36031	318086002		Flat Washer		Appelez-nous	-
*36032	5303131766		Screw, Top Trim, 6-32 X 3/8				$ 10.87
*36033	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*36034	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*36035	5303308450		Screw, 8 X 3/8		Appelez-nous	-
*36036	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
