SELECT A DIAGRAM

01 - Cover

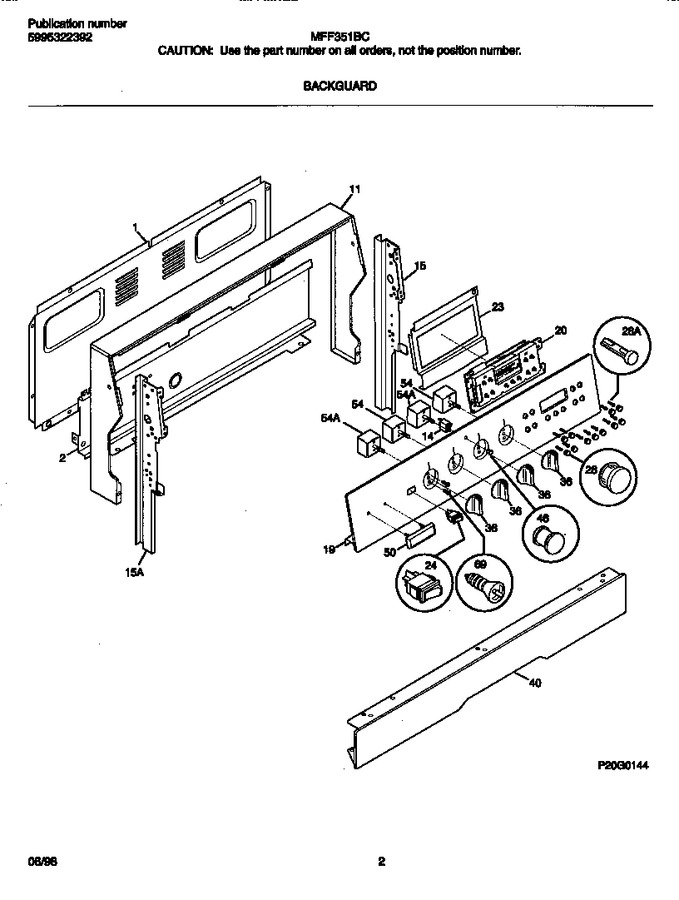

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316061851		Trim-wrapper,textured ,black		Appelez-nous	-
14	316022504		Light-indicator,250v		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316076544		Panel-control		Appelez-nous	-
20	316080104		Clock/timer,electronic		Appelez-nous	-
23	316079002		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
28	316080600		Shaft-push Button, Clock/timer/eoc, Black				$ 49.41
28	316015102		Push Button, Clock/timer/eoc, Black				$ 50.35
36	316015203		Knob-control, (6)		Appelez-nous	-
40	316062346		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
*63080	316003024		Installation Instr		Appelez-nous	-
*63081	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*63082	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*63083	316085600		Insulator-shield Thermostt		Appelez-nous	-
*63084	316112500		Template, Anti-tip Bracket				$ 3.55
*63085	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*63086	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
