SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

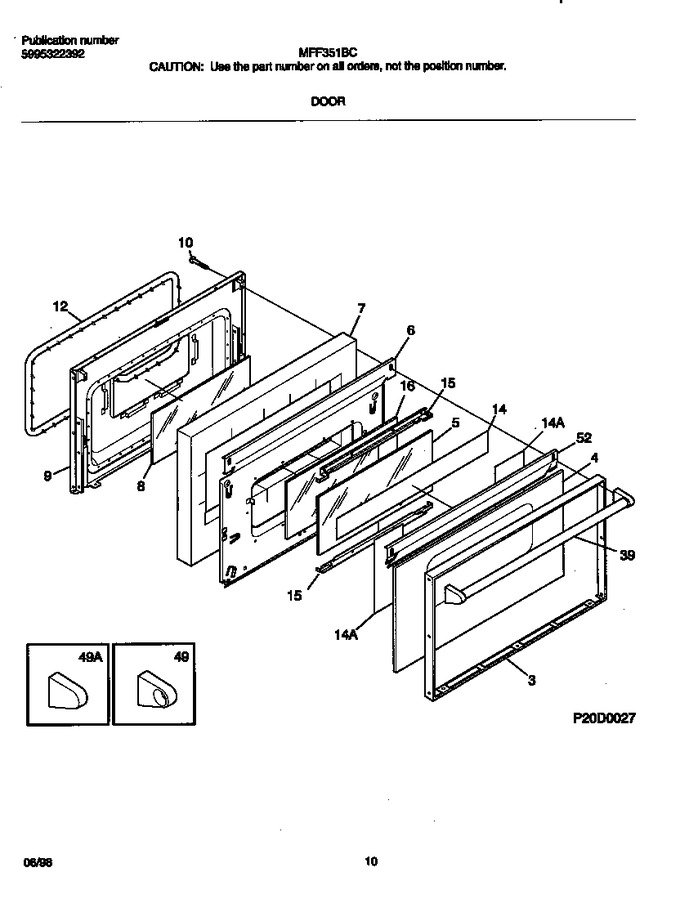

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	316089000		Glass-oven Door,black ,outer		Appelez-nous	-
5	316088700		Glass,oven Door ,airwash				$ 70.17
6	316088401		Shield-wool		Appelez-nous	-
7	316076403		Insulation-door		Appelez-nous	-
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
12	5303131601		Seal-oven Door				$ 374.63
14	5303208656		Reflector, Aluminum Foil		Appelez-nous	-
14	5303208655		Reflector, Aluminum Foil		Appelez-nous	-
15	316081403		Bracket,glass Mtg		Appelez-nous	-
16	316085701		Glass,oven Door ,heat Barrier				$ 131.41
39	5304529996		Handle-door, Black, Oven   (Replaces: 316091114)				$ 156.11
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*63109	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*63110	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*63112	316065306		Plate Warning/caution		Appelez-nous	-
*63113	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*63114	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*63115	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
*63116	316008401		Washer,3/4 X 1/4 ,steel				$ 11.34

    View Diagram in Separate Window       Print Part List
