SELECT A DIAGRAM

01 - Cover


02 - Backguard

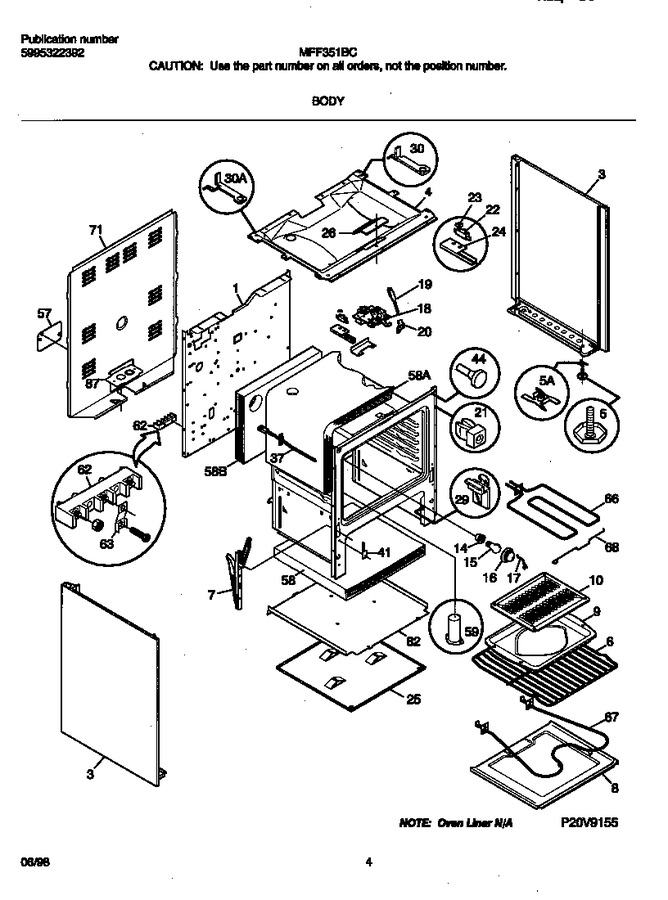

03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080804		Back-main, Short,dipped ,black		Appelez-nous	-
4	5303271658		Burner Box		Appelez-nous	-
5	316107300		Screw-leveling		Appelez-nous	-
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007002		Hinge-oven Door, (2)				$ 244.07
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	3205234		Insert, Broiler Pan		Appelez-nous	-
14	316116400		Socket-light			Immediately	$ 56.10
15	5300067016		Light Bulb/lamp, Incand, Oven, 250 V		Appelez-nous	-
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
18	5303015361		Latch-door, Bimetal		Appelez-nous	-
19	5303131357		Handle-latch				$ 37.33
20	3203218		Knob-latch		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
22	5303269499		Switch-latch				$ 20.53
23	08067776		Fastener-push-on		Appelez-nous	-
24	3051413		Shield-latch		Appelez-nous	-
25	3200848		Shield,heat ,lower		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
30	5303283575		Bracket-hinge, Main Top, Lh		Appelez-nous	-
30	5303283574		Bracket-hinge, Main Top Rh		Appelez-nous	-
37	5304497424		Probe-oven Temp   (Replaces: 316111202)			Immediately	$ 38.32
41	3131570		Cover Hinge Cutout				$ 7.35
44	3131903		Bumper				$ 55.36
57	316081101		Cover-access		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316073600		Tube-oven Vent		Appelez-nous	-
62	5303935061		Terminal Block		Appelez-nous	-
63	5301145190		Plate=ground Strap		Appelez-nous	-
66	5303051140		Element-broil				$ 202.71
67	316075103		Element-bake,lower Oven   (Replaces: 316075102)			Immediately	$ 42.36
68	316075300		Support-element, Broil		Appelez-nous	-
71	316015805		Shield-rear Wall		Appelez-nous	-
82	5303289913		Shield,insulation		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
*63087	3203550		Plug-button			Immediately	$ 15.22
*63088	08067757		Cover Plate		Appelez-nous	-
*63089	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*63090	5303051099		Nut, Hex, 10-32		Appelez-nous	-
*63091	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*63092	5308014215		Screw,8-x 1/2 ,(4)				$ 2.28
*63093	316001364		Harness-wiring,main		Appelez-nous	-
*63097	3131593		Shield-latch, Top		Appelez-nous	-
*63098	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
*63099	08067978		Stud Spacer		Appelez-nous	-
170A	316112005		Anti-tip Bracket   (Replaces: 316107200)			Immediately	$ 18.91
170B	316116000		Screw-anti Tip, 1.75`` Concrete				$ 12.89
3A	316081034		Panel-bodyside,white ,rh		Appelez-nous	-
3B	316081035		Panel-bodyside,white ,lh		Appelez-nous	-
58A	316054200		Insulation, 2`` ,oven Back		Appelez-nous	-
58A	316047707		Insulation, 1`` ,oven Wrapper				$ 150.92
58B	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
58B	316054202		Insulation, 1`` ,oven Back				$ 76.59

    View Diagram in Separate Window       Print Part List
