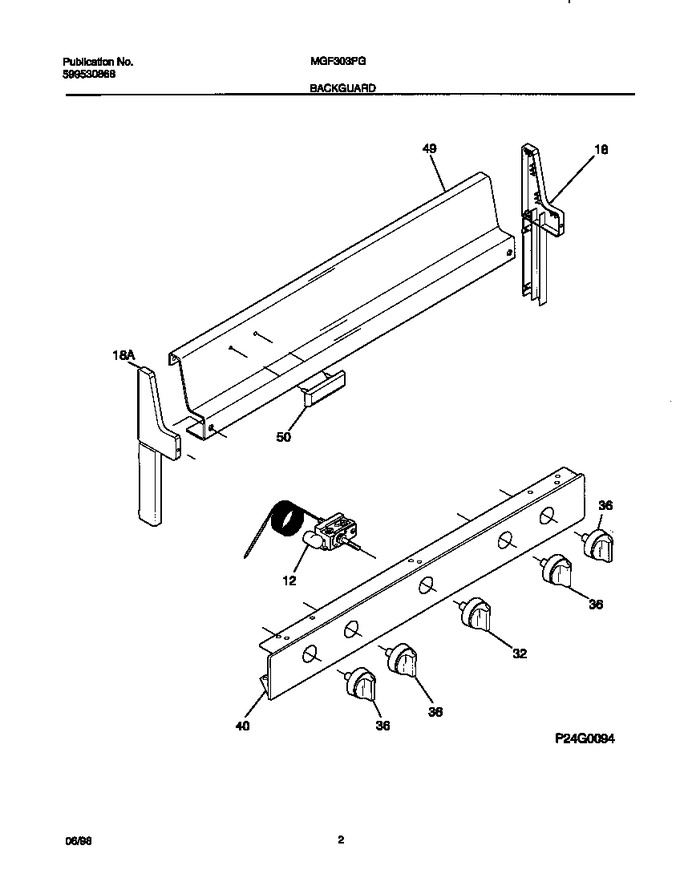

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
18	3202802		End Cap,black ,rh		Appelez-nous	-
18	3202801		End Cap,black ,lh		Appelez-nous	-
32	316102300		Knob-thermostat,black				$ 65.22
36	316009008		Knob-top Valve, (4)				$ 54.86
40	316062325		Panel, Manifold		Appelez-nous	-
49	3051199		Panel-backguard, White		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
*70240	3016755		End Cap, Black, (2)		Appelez-nous	-
*70241	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*70242	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
