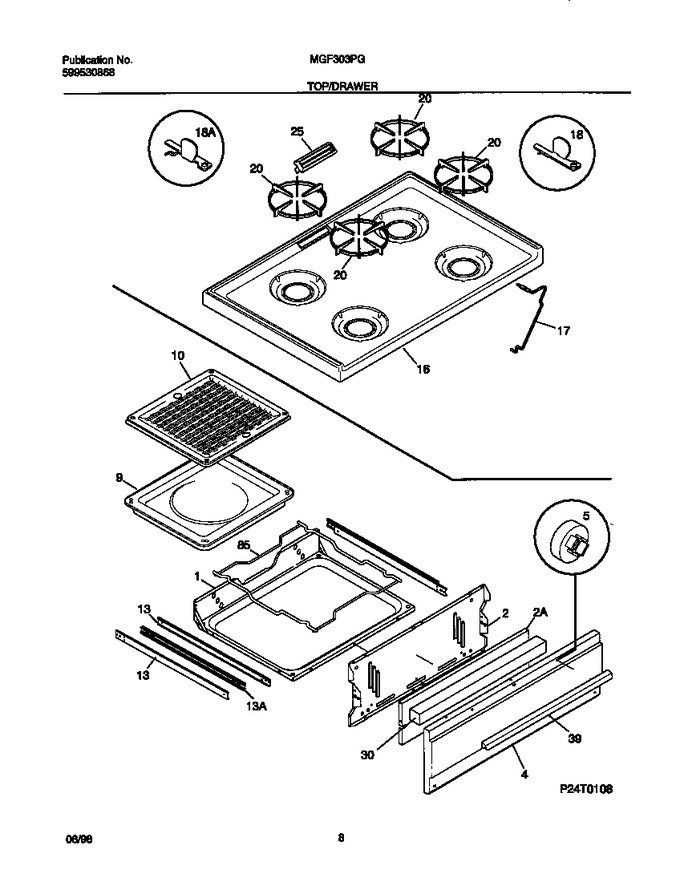

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110401		Carriage,broiler		Appelez-nous	-
2	316110101		Liner-low Broil		Appelez-nous	-
2	316110800		Shield,broiler		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
13	316111600		Glide-drawer,inner		Appelez-nous	-
13	316111500		Glide-drawer,outer		Appelez-nous	-
16	316104301		Main Top,white				$ 168.16
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
20	316055800		Grate, (4)				$ 43.99
25	316104500		Cover-vent,metal ,chrome		Appelez-nous	-
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	3201268		Handle-drawer, Brushed Chrome		Appelez-nous	-
85	316110500		Rack,warmer Drawer		Appelez-nous	-
*70257	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*70258	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*70259	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*70261	316089500		Screw, 10-16 X .486, Safety Valve, Handle, (4)				$ 13.46
*70262	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62

    View Diagram in Separate Window       Print Part List
