01 - Cover
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

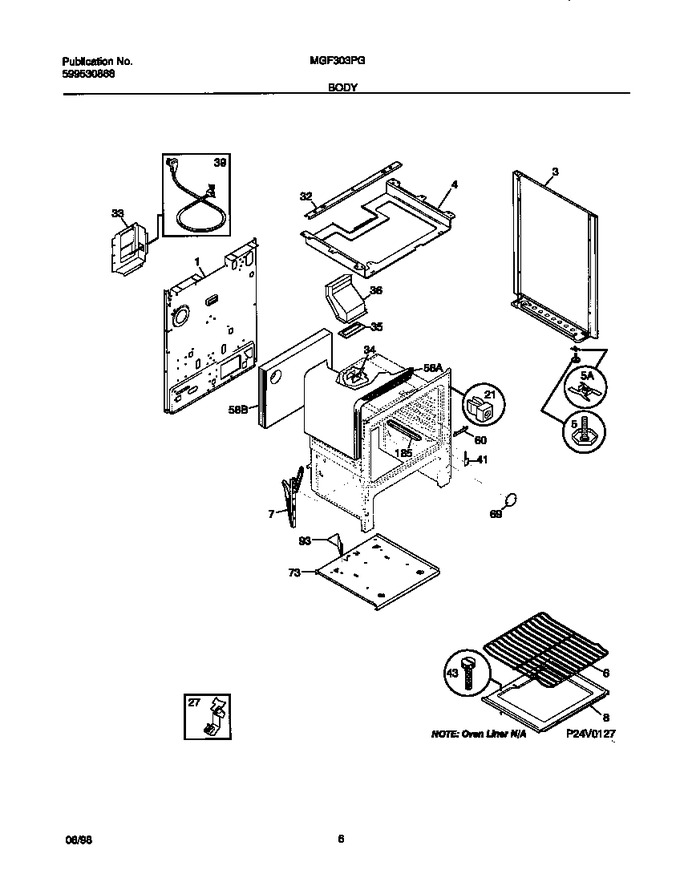

| 1 | 316029412 | Back-main |
|
- | |||||
| 3 | 316081028 | Panel-bodyside, White, Rh |
|
- | |||||
| 4 | 316067206 | Burner Box |
|
- | |||||
| 5 | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 5 | 5303288460 | Nut,t-type,leveling Screw |
|
$ 27.14 | |||||
| 6 | 316067902 | Rack,oven |
|
Immediately | $ 103.10 | ||||
| 7 | 316007007 | Hinge-oven Door, (2) |
|
- | |||||
| 8 | 5303212540 | Panel-oven Bottom |
|
- | |||||
| 21 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 32 | 3203441 | Channel-burner Supt |
|
- | |||||
| 33 | 316055601 | Shield-spark Module |
|
- | |||||
| 34 | 3018607 | Cover Plate |
|
$ 10.50 | |||||
| 35 | 08067965 | Gasket-flue |
|
- | |||||
| 36 | 316103901 | Flue,black |
|
- | |||||
| 39 | 5304534377 | Cord-electric Power (Replaces: 3202006) |
|
$ 26.85 | |||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 43 | 316282700 | Screw-oven Bottom, 8-18 X 1.438 (Replaces: 3131732) |
|
$ 9.93 | |||||
| 58 | 3017142 | Insulation, Oven Wrapper |
|
$ 193.50 | |||||
| 58 | 3203541 | Insulation, Oven Back |
|
- | |||||
| 60 | 5303015372 | Cover-oven Front |
|
- | |||||
| 69 | 3051218 | Plate,oven Light |
|
- | |||||
| 73 | 316109901 | Base-broiler |
|
- | |||||
| 93 | 316110000 | Shield-ignitor Connection,metal ,galvanized |
|
- | |||||
| 185 | 316112900 | Shield,thermo Bulb |
|
- | |||||
| *70245 | 3131192 | Cover-rear Wall |
|
- | |||||
| *70246 | 3203550 | Plug-button |
|
Immediately | $ 15.22 | ||||
| *70247 | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| *70248 | 316519700 | Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold (Replaces: 316021108) |
|
$ 10.02 | |||||
| *70249 | 316073400 | Plate,weight ,(3) |
|
- | |||||
| *70250 | 316081029 | Panel-bodyside,white ,lh |
|
- | |||||
| *70252 | 3934058 | Anti-tip Kit |
|
$ 98.75 | |||||
| *70253 | 316116000 | Screw,anti-tip ,(4) (Replaces: 316078600) |
|
$ 12.89 | |||||
| *70254 | 316064600 | Support,oven Bottom |
|
$ 18.95 | |||||
| *70255 | 5303289684 | Fastener,tanden Wire ,(2) |
|
- | |||||
| *70256 | 5303288570 | Screw-heat Shield, Hd Shldr Sqdr, 8-18 X 1/2 |
|
- |
