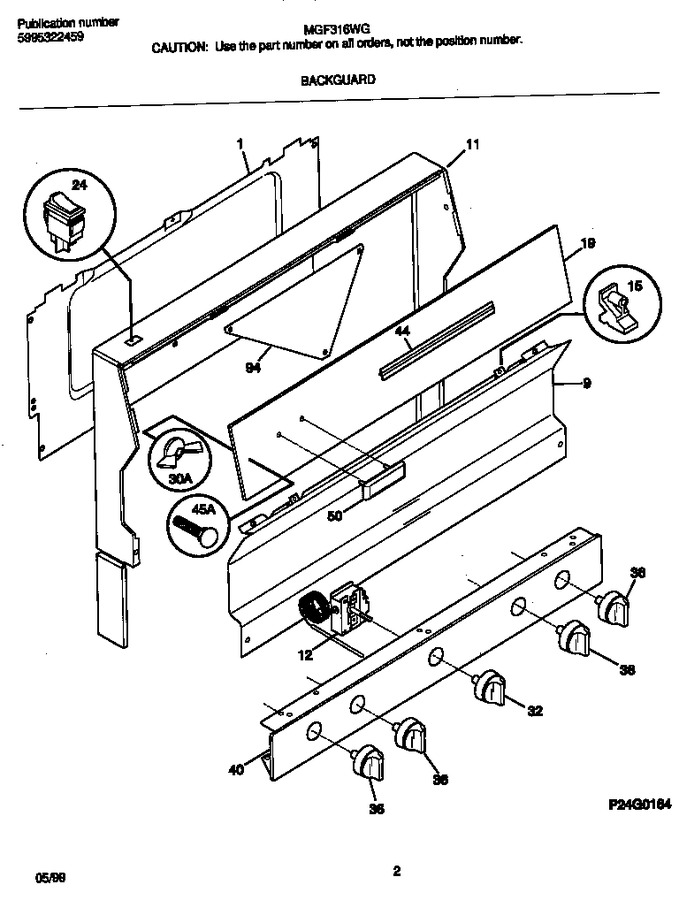

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043611		Trim-splasher, White		Appelez-nous	-
11	316083716		Trim-wrapper,white		Appelez-nous	-
12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
19	316034121		Panel-control,metal ,white		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
30	316064300		Nut,nylon		Appelez-nous	-
32	316102303		Knob-thermostat,black				$ 61.43
36	316009046		Knob,top Valve ,white ,(4)   (Replaces: 316009009)				$ 51.57
40	316086820		Panel-manifold, White		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056903		Bolt-fastener,nylon ,white		Appelez-nous	-
50	316096901		Nameplate, White				$ 9.82
94	316111300		Stiffener-bg,metal ,zinc		Appelez-nous	-
*74320	316020103		End Cap,handle ,almond ,(2)		Appelez-nous	-
*74322	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*74323	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*74324	316097602		Insulator		Appelez-nous	-
*74325	316105805		Installation Instructions		Appelez-nous	-
*74326	316112500		Template, Anti-tip Bracket				$ 3.55
