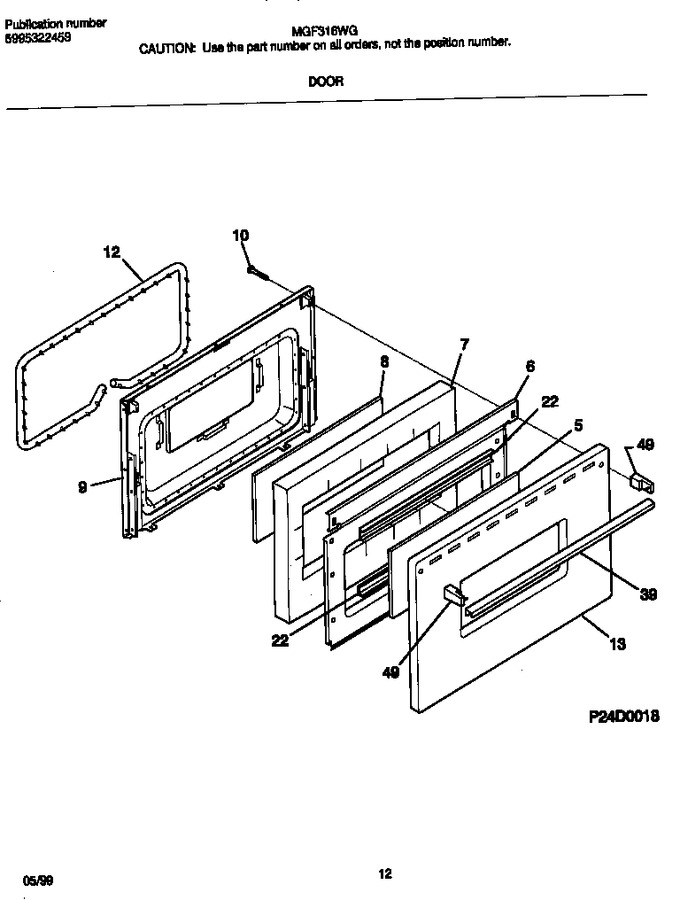

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	316050300		Glass,oven Door ,white ,outer		Appelez-nous	-
6	316088403		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
13	3017081		Panel, Oven Door, White		Appelez-nous	-
22	5303272476		Retainer,glass ,(2) ,angle		Appelez-nous	-
39	316545301		Handle-door, White, Oven   (Replaces: 316020202)			Immediately	$ 130.85
49	316020101		End Cap-handle, White , (2)		Appelez-nous	-
*74341	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*74342	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*74343	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*74344	316008401		Washer,3/4 X 1/4 ,steel				$ 11.34
