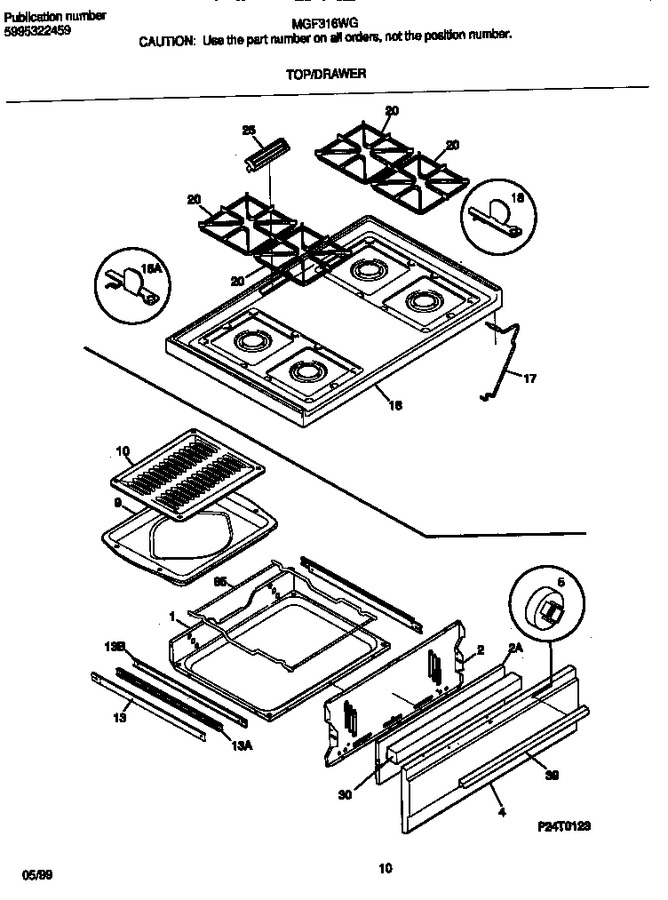

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Broiler				$ 232.57
2	316110800		Shield,broiler		Appelez-nous	-
2	316110101		Liner-low Broil		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	3205234		Insert, Broiler Pan		Appelez-nous	-
13	316111500		Glide-drawer,outer		Appelez-nous	-
13	316111600		Glide-drawer,inner		Appelez-nous	-
13	316111501		Glide-low Broil,outer		Appelez-nous	-
16	316104401		Main Top,white		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
20	316088900		Grate, Black, (4)		Appelez-nous	-
25	316104500		Cover-vent,metal ,chrome		Appelez-nous	-
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	316019505		Handle-drawer, White				$ 82.27
44	3131903		Bumper				$ 55.36
85	316115600		Rack-low Broil				$ 105.47
*74335	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*74336	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*74337	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*74339	316072100		Bushing, Wire		Appelez-nous	-
*74340	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62

    View Diagram in Separate Window       Print Part List
