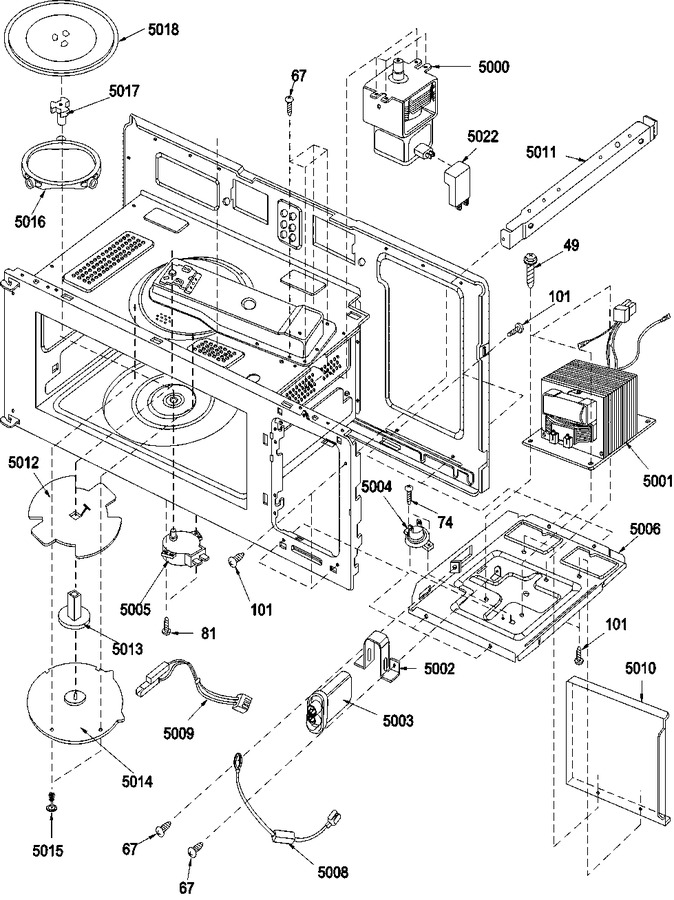

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 49 | R0654125 | Screw, Tap Tite |
|
- | |||||
| 67 | 4344826 | Screw, Bining Hd S/tap (Replaces: R0654143) |
|
$ 14.31 | |||||
| 74 | R0654030 | Screw, Pan Hd S/tap |
|
- | |||||
| 81 | R0654180 | Screw, Pan Hd |
|
- | |||||
| 101 | R0654038 | Screw, Truss Hd S/tap |
|
- | |||||
| 5000 | R9800431 | Magnetron |
|
- | |||||
| 5001 | R9800435 | Transformer, H.v. |
|
- | |||||
| 5002 | R9800436 | Bracket, Capacitor |
|
- | |||||
| 5003 | R9800439 | Capacitor, H.v. |
|
- | |||||
| 5004 | R9800443 | Thermostat, Bimetal |
|
- | |||||
| 5005 | R9800405 | Motor-rotating Glass Tray |
|
- | |||||
| 5006 | R9800444 | Plate, Bottom |
|
- | |||||
| 5008 | WPR9800486 | Diode- Black Sleeve (Replaces: R9800486) |
|
$ 26.79 | |||||
| 5009 | R9800445 | Harness |
|
- | |||||
| 5010 | R9800446 | Guide |
|
- | |||||
| 5011 | R9800447 | Brace |
|
- | |||||
| 5012 | R9800449 | Fan, Stirrer |
|
- | |||||
| 5013 | R9800450 | Shaft, Stirrer |
|
- | |||||
| 5014 | R9800451 | Cover, Stirrer |
|
- | |||||
| 5015 | WP4359508 | Rivet, Plastic (Replaces: R9800452) |
|
$ 8.28 | |||||
| 5016 | R9800453 | Assy, Rotating Ring |
|
- | |||||
| 5017 | R9800454 | Shaft, Turn Table |
|
- | |||||
| 5018 | WP8172138 | Tray, Glass (Replaces: R9800455) |
|
$ 87.23 | |||||
| 5022 | R9800442 | Assy, Choke Filter |
|
- |
