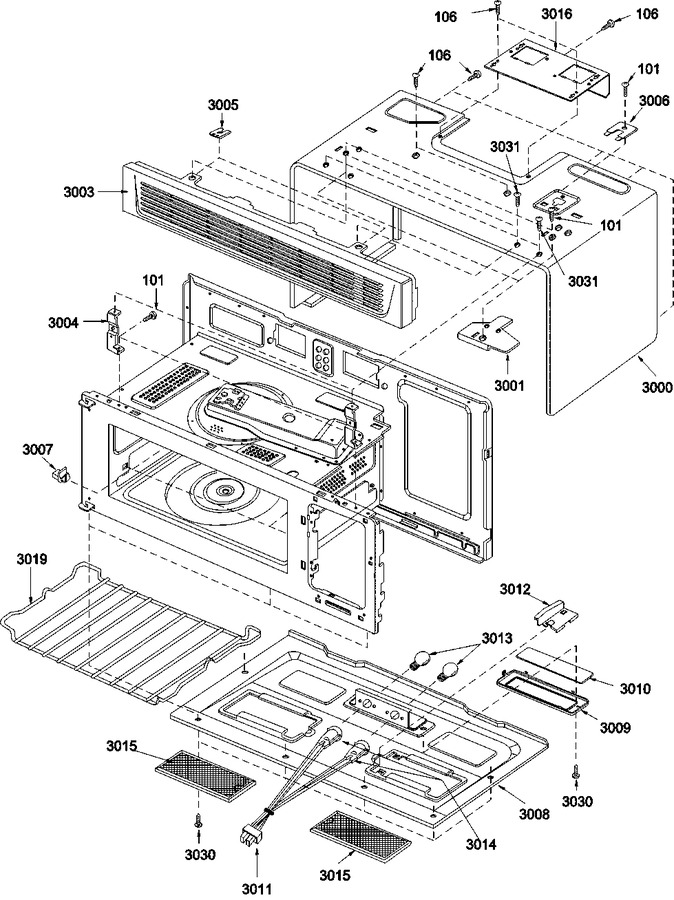

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 101 | R0654038 | Screw, Truss Hd S/tap |
|
- | |||||
| 106 | R0654183 | Screw, Truss Hd |
|
- | |||||
| 3000 | R9800362 | Outer Case Almond |
|
- | |||||
| 3001 | R9800364 | Bracket, Mounting |
|
- | |||||
| 3003 | R9800370 | Grille, Vent |
|
- | |||||
| 3004 | R9800372 | Bracket |
|
- | |||||
| 3005 | R9800373 | Bracket |
|
- | |||||
| 3006 | R9800374 | Cover, Power Cord |
|
- | |||||
| 3007 | R9800384 | Holder, Shelf |
|
$ 5.85 | |||||
| 3008 | R9800385 | Plate, Base |
|
- | |||||
| 3009 | R9800391 | Bracket |
|
- | |||||
| 3010 | R9800395 | Lens, Glass |
|
- | |||||
| 3011 | R9800400 | Harness, Lamp |
|
- | |||||
| 3012 | R9800401 | Bracket |
|
- | |||||
| 3013 | 8206232A | Bulb (Replaces: R9800403) |
|
Immediately | $ 6.61 | ||||
| 3014 | R9800407 | Socket, Lamp |
|
- | |||||
| 3015 | 4358853 | Filter, Grease (Replaces: R9800408) |
|
Immediately | $ 16.99 | ||||
| 3016 | R9800409 | Mount |
|
- | |||||
| 3019 | R9800410 | Rack, Grill |
|
- | |||||
| 3030 | R0654039 | Screw, Truss Hd S/tap |
|
- | |||||
| 3031 | R9800359 | Screw, Tap Th |
|
- |
