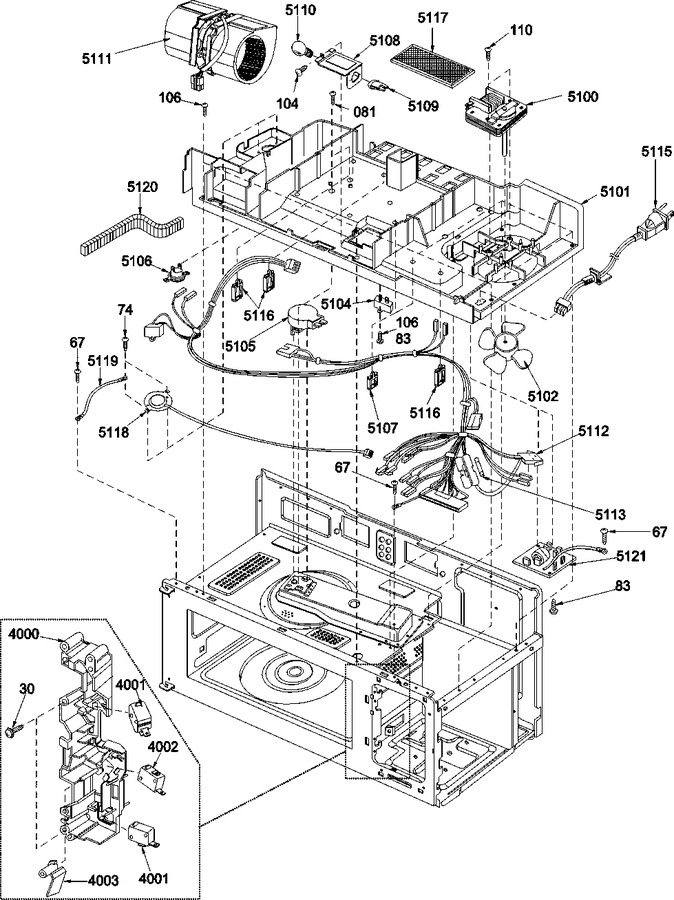

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
30	R0654178		Screw, Special D		Appelez-nous	-
67	4344826		Screw, Bining Hd S/tap   (Replaces: R0654143)				$ 14.31
74	R0654030		Screw, Pan Hd S/tap		Appelez-nous	-
81	R0654180		Screw, Pan Hd		Appelez-nous	-
83	R0654185		Screw, Truss Hd		Appelez-nous	-
104	R9800360		Screw, Tap Th		Appelez-nous	-
106	R0654183		Screw, Truss Hd		Appelez-nous	-
110	R9800500		Screw, Tap Th		Appelez-nous	-
4000	R9800413		Board, Latch		Appelez-nous	-
4001	4392027		Switch, Monitor   (Replaces: R0654175)				$ 138.41
4002	4392027		Microswitch, Monitor   (Replaces: R0654096)				$ 138.41
4003	R9800416		Lever, Latch		Appelez-nous	-
5100	R9800456		Motor, Fan		Appelez-nous	-
5101	R9800457		Duct		Appelez-nous	-
5102	R9800458		Blade, Motor Fan		Appelez-nous	-
5104	R9800459		Fuse Assy		Appelez-nous	-
5105	R9800460		Motor		Appelez-nous	-
5106	R9800461		Thermostat, Bimetal		Appelez-nous	-
5107	R0654118		Holder, Wire		Appelez-nous	-
5108	R9800462		Cover		Appelez-nous	-
5109	R9800407		Socket, Lamp		Appelez-nous	-
5110	8206232A		Bulb   (Replaces: R9800403)			Immediately	$ 6.61
5111	R9800463		Motor, Ventilation		Appelez-nous	-
5112	R9800464		Harness, Wire		Appelez-nous	-
5113	ABC20		Fuse, 20amp   (Replaces: R9800424)			Immediately	$ 10.31
5115	R9800466		Cord, Power		Appelez-nous	-
5116	R9800467		Holder		Appelez-nous	-
5117	WP56001084		Filter, Charcoal   (Replaces: R9800468)				$ 29.84
5118	R9800469		Sensor, Humidity		Appelez-nous	-
5119	R9800470		Wire		Appelez-nous	-
5120	R9800471		Cushion		Appelez-nous	-
5121	R9800472		Assy, Fuse Block/noise Filter		Appelez-nous	-
