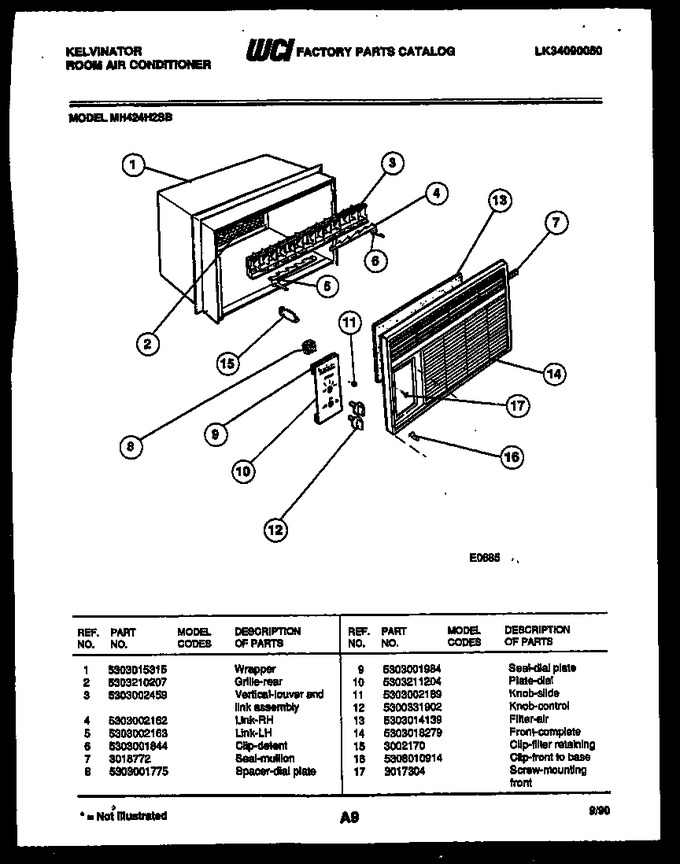

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 5303210207 | Grille-rear |
|
- | |||||
| 3 | 5303002459 | Vertical Louver And Link Assembly |
|
- | |||||
| 4 | 5303002162 | Link-rh |
|
- | |||||
| 5 | 5303002163 | Link-lh |
|
- | |||||
| 6 | 5303001844 | Clip-detent |
|
- | |||||
| 7 | 3018772 | Seal Mullion |
|
- | |||||
| 8 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 9 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 10 | 5303211204 | Plate-dial |
|
- | |||||
| 11 | 5303002189 | Knob-slide |
|
- | |||||
| 12 | 5300331902 | Knob Control |
|
- | |||||
| 13 | 5303014139 | Filter-air |
|
- | |||||
| 14 | 5303018279 | Front-complete |
|
- | |||||
| 15 | 3002170 | Clip-filter Retaining |
|
- | |||||
| 16 | 5308010914 | Clip-front To Base |
|
- | |||||
| 17 | 3017304 | Screw-mounting Front |
|
- |
